The reference signal provides the source power for the system and is split to power the local oscillator (LO) and RF paths separately. The RF path passes through the device under test and includes attenuators to set the appropriate drive level. The attenuators before the amplifier control input power and compression level, since high power can overdrive the amplifier. The attenuators after the amplifier protect the internal mixer; they impact the phase noise readings by approximately 1 dB, depending on the amount of attenuation. If the output power from the amplifier is very low, minimizing the RF drive attenuation is beneficial to ensure the phase noise analyzer can detect the input signal.

The LO path includes a variable delay line and a 90-degree phase shifter to maintain quadrature between the LO and RF paths. Phase cancellation is highly dependent on LO and RF phase matching, so the variable delay is important to overcome inherent errors in the phase shifter. By performing manual adjustments to the LO path, we have seen measurements improve up to 4 dB. Short cables and low loss paths are needed on the LO side to ensure sufficient input power to the mixer, helping compensate for the output power limitations of standard signal sources, especially at higher frequencies. High LO drive of 15 to 18 dBm reduces the amplitude modulation (AM) noise in the phase detector, which lowers the system measurement floor. After the mixer cancels out the reference signal, the signal that remains represents the additive phase noise associated with the amplifier. The phase noise analyzer amplifies this using an internal low noise amplifier (LNA) and the voltage signal is applied to an analog-to-digital converter. The resulting trace provides a sweep of the single sideband phase noise by offset frequency.

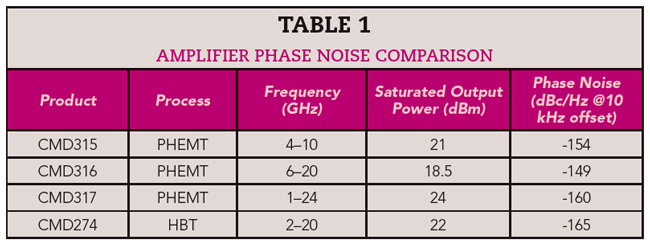

Using this measurement technique, we measured amplifiers from Qorvo’s standard products line, testing different power levels and frequencies. Table 1 summarizes the median phase noise for four amplifiers. Compared to the reference signal’s phase noise of about -120 dBc/Hz, the low phase noise values measured show the effectiveness of the test system’s noise cancellation.

AMPLIFIER TRENDS

As shown in the table, the phase noise of the four amplifiers - low noise, driver and wideband distributed amplifiers - varies from approximately -150 to -165 dBc/Hz. To explain the differences, we compared amplifier topologies, but found it is not a defining factor. Rather, the differences are largely determined by device technology.

Figure 4 HBT (CMD274) vs. PHEMT (CMD316) amplifier phase noise, both in saturation at 6 GHz.

Figure 5 CMD315 PHEMT amplifier phase noise vs. signal level at 6 GHz.

Figure 4 compares the phase noise of a PHEMT amplifier (CMD316) to one using HBTs (CMD274). The phase noise measurement of the HBT amplifier is 10 to 15 dB lower than the PHEMT amplifier when operated in saturation and at the same frequency. Although PHEMT amplifiers have higher output power and frequency capabilities than HBT amplifiers, they typically have worse phase noise. Compared to PHEMTs, HBTs have lower electron mobility, leading to less fluctuations in charge and electron movement within the device channels.⁶ Less variation contributes to fewer up-conversions in HBT amplifiers, so they have considerably lower phase noise than PHEMT amplifiers.⁷

A second trend investigated for PHEMT and HBT amplifiers was the relationship between phase noise and amplifier compression, concentrating on the three main regions of an amplifier’s transfer characteristic: linear, saturated and 1 dB compression. In an amplifier’s linear region, the output power is directly proportional to input power. At saturation (P_sat), an amplifier produces no additional output power as input power increases. At 1 dB compression (P_1dB), the gain of the amplifier is reduced by 1 dB from its linear level, an intermediate region between linear and saturated operation. To compare the phase noise of these three states, we used attenuation to regulate the amplifier’s input power to consistently measure performance and see the trends.

Figure 5 shows phase noise measurements of a PHEMT amplifier (CMD315) driven at different levels of compression. The phase noise is a minimum at P_1dB, achieving -156.3 dBc/Hz at 10 kHz offset, a significant phase noise improvement versus being operated at either linear or P_sat. At frequencies close to the carrier, many other amplifiers show the same trend in phase noise versus compression, i.e., the phase noise is typically minimized at P_1dB, followed closely by the linear drive region. Saturated operation generally leads to the highest phase noise, often 3 to 4 dB higher when compared to P_1dB.

We believe the optimal result at P_1dB can be explained considering the distortion in amplifiers caused by amplitude-to-amplitude (AM-AM) and amplitude-to-phase (AM-PM) modulation. AM-AM refers to the change in an amplifier’s output amplitude depending on the input power level, while AM-PM refers to the change in the output phase of a signal depending on changes in the input amplitude. Each type of modulation contributes to the additive phase noise of an amplifier, so minimizing these distortions will minimize the overall noise.

The AM-AM and AM-PM distortions on the CMD315 PHEMT amplifier are shown in Figure 6. Note that the AM-AM and AM-PM trends appear to correlate closely to amplifier saturation levels. One explanation may be the following: In the linear region (less than 0 dBm input power), both the AM-AM and AM-PM distortions are minimized. Any AM noise at the input will appear primarily as amplified, undistorted AM noise at the output and will cause minimal additional phase noise. As the amplifier enters compression around 2 dBm input power, its gain roll-off attenuates the AM-AM noise and lessens its impact on phase deviation at the output. At the same time, however, the AM-PM phase distortion begins to grow. The AM-PM distortion increases as the amplifier reaches deep saturation, while the impact from the AM-AM noise is lessened further. Therefore, it appears the contribution to an amplifier’s additive phase noise is maximized in the linear region by AM-AM noise and maximized in the saturated region by AM-PM distortion. However, as shown in Figure 5, the lowest phase noise of the CMD315 amplifier is at P_1dB. This region represents a near ideal situation where the AM-AM distortion is partially suppressed, while the AM-PM distortion is still small, less than 2 degrees at 2 dBm of input power (see Figure 6). Operating the amplifier at P_1dB yields the minimum overall noise of the device and, therefore, the lowest additive phase noise. Many GaAs PHEMT and HBT amplifiers follow this trend; however, it may not be universal across all amplifiers, especially where the AM-PM distortion is greater at lower input power.

Figure 6 AM-AM and AM-PM distortion of the CMD315 PHEMT amplifier at 6 GHz.

Finally, note a curious phenomenon in Figure 5, where the trends in phase noise change for frequency offsets of 2 MHz or greater. At these higher offset frequencies, P_sat becomes the preferred cooperating level to achieve the lowest phase noise.⁸ This relationship is governed by

where L is the phase noise after the spectrum levels out, -177 is the power of the thermal noise floor at room temperature, P_in is the input power to the amplifier and NF is the amplifier’s noise figure. As an amplifier enters saturation, its input power increases at a much faster rate than its output noise, resulting in decreasing phase noise at high offset frequencies. As we were more concerned about the impact of phase noise at lower offsets, e.g., <100 kHz, we did not investigate this trend further.

PHASE NOISE VARIABILITY

As phase noise will certainly vary from part-to-part and between lots, it is important for system engineers to know the bounds of this variation. We tested phase noise on production lots of the CMD264, a standard product LNA, to confirm the relationships between phase noise and power were consistent for all units in a lot. The packaged parts were manually tested using an expanded phase noise analysis setup, which included a manual production test fixture and longer cables. Since the apparatus reduced connectivity and drive power levels, the average phase noise measured across the lot increased slightly compared to the initial baseline.

Figure 7 CMD264 phase noise distribution at 10 kHz offset from an 8 GHz carrier at 1 dB compression.

Figure 7 shows the phase noise distribution at 10 kHz offset for 78 units within a single lot at P_1dB. The phase noise variation fits a normal distribution about the mean for all units tested. Phase noise values have a range of about 1.3 dB and a standard deviation of 0.3 dB, a relatively tight distribution for the part. The similarities indicate that phase noise is related more to the semiconductor process used for an amplifier, rather than manufacturing deviations among the units. Also, this margin of error is small enough that the relationship between compression and phase noise cannot be discounted as a measurement error.

CONCLUSION

In this article, we examined the use of a phase cancellation technique for making accurate additive phase noise measurements. We also identified methods for improving the system noise floor performance and optimizing the phase detector to enhance measurement capabilities. Using these techniques, we explored phase noise trends considering the amplifier’s semiconductor process and compression level. We also validated these trends by testing amplifiers in a single lot to demonstrate phase noise consistency.

To minimize additive phase noise, we recommend selecting an HBT amplifier. To optimize the phase noise of PHEMT amplifiers, we recommend operating at P_1dB to minimize both AM-AM and AM-PM distortion. If operation at P1dB is not feasible, then the linear region provides the next lowest phase noise. Overall, we strongly recommend considering phase noise capabilities when choosing an amplifier for sensitive RF systems.
