Test the responsive performance of your sophisticated aerospace and defense electronics and sensor systems with one of NSI-MI’s RF Scene Generators™. NSI-MI designs and manufactures specialized RF Scene Generators™ to create user-controlled simulations of complex real-world RF environments. These precision simulators test the performance of sophisticated electronics and sensor systems. The RF Scene Generators™ uses spatially moving RF signals to provide a series of controlled events or scenes to a device under test (DUT). The DUT includes an RF sensor whose response will be measured and recorded. We specialize in the areas of aerospace and defense enabling simulation of multiple emitters in motion including decoys, threat systems, communication systems, aircraft, and more.

Advantages
  • Measurements from 18.0 to 110.0 GHz
  • Real-time full 3D pattern characterization
  • Up to 75 kg AUT payload capacity
  • Convenient swappable transmit/receive modes
  • Powerful plotting and antenna analysis software
  • Easily configurable for mmWave measurements

RF Scene Generator™ Systems

Related Resources

Surface-Mount Failsafe Electromechanical Relay Switches
High Velocity Cable Assemblies: ACH Series
Zero Bias Schottky Detector Diodes: SZB900 Series
NSI-MI Technologies

A white and blue plastic frame Description automatically generated

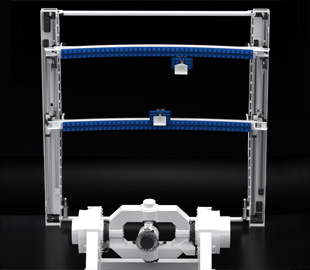

Mechanical RF Scene Generators™



In the simplest of RF target simulators, target motion is created and presented to the DUT by electromechanically moving one or more emitters, representing targets along a spherical surface with the DUT at the focal point of the sphere.



View More

A black box with red and blue text Description automatically generated

Compact RF Scene Generators™



A portable anechoic compact range creates very high dynamic target motion by mechanically moving the compact range reflector, thereby changing the angle of arrival of the plane wave presented to the DUT over a limited Field-of-View.



View More

A close-up of a wall of lights Description automatically generated

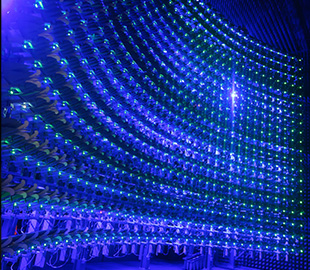

Real-Time RF Scene Generators™



An array of emitters capable of virtually unlimited velocities and accelerations of multiple targets with no occlusion and no moving parts. It can move a target from one end of the FOV to the other in one update frame and back again in another.



View More
