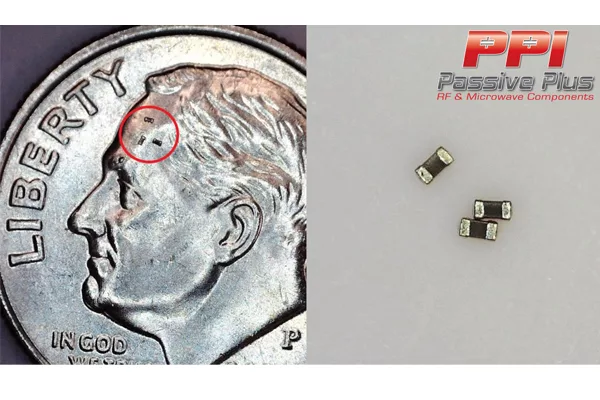

Passive Plus (PPI) has expanded its broadband capacitor line to include the industry’s smallest .010” x .005” broadband part characterized for RF performance. The 01005BB104 series has been expanded and a new part is now offered with a 10 V Rating. The 01005BB104KW100 (100 nF) broadband multilayer ceramic capacitor specifications include:
01005BB104KW100 | |
Capacitance: |
100 nF |
Size: |
.010” x .005” |
WVDC: |
10V |
TCC: |
±15%, (-55°C to +85°C) |
Typical Operating Frequency: |
16 kHz (-3 dB point) to > 67 GHz |
Insertion Loss: |
< 1 dB |
Termination: |
Tin plated over nickel barrier (RoHS) compliant |
Typical applications include optoelectronics/high speed data, ROSA/TOSA (transmit/receive optical subassemblies), synchronous optical networks, broadband test equipment, broadband microwave and mmWave amplifiers and oscillators.
