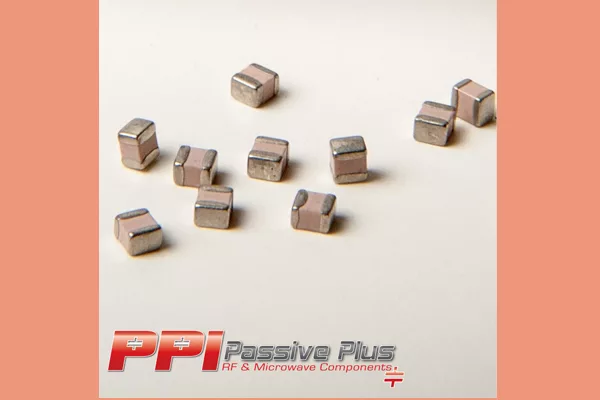

Passive Plus’s product offering includes traditional high-Q low ESR 1111 (0.110” x 0.110”) multi-layer ceramic capacitors for UHF/microwave RF power amplifiers, mixers, oscillators, filter networks, low noise amplifiers and timing circuits and delay lines. These capacitors are available in two dielectrics (P90 or NP0); three different terminations: magnetic (100% Sn - solder over nickel plating), non-magnetic (100% Sn - solder over copper plating) and tin/lead (90% Sn 10% Pb - solder over nickel plating) and are designed and manufactured to meet the requirements for MIL-PRF-55681 and MIL-PRF-123.
1111C/P series:
- Size: .110” x .110”
- Value Range: 0.1 – 10,000 pF
- WVDC: 500 V
- Extended WVDC: 1500 V
- TCC:
- C: 0 ± 30 PPM/°C (-55°C to 125°C)
- 0 ± 60 PPM/°C (> 125˚C to 200˚C)
- P: +90 ± 20 PPM/°C (-55°C to 200°C)
Engineering design kits for the 1111C/P case size are available in magnetic and non-magnetic terminations.
