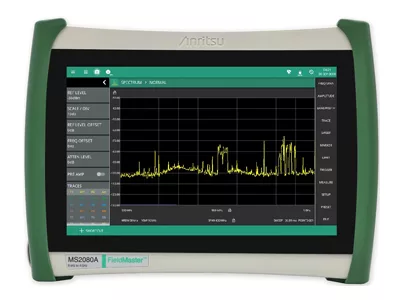

Anritsu Company introduces the Field Master™ MS2080A, a multi-functional spectrum analyzer that combines nine instruments into a single solution for time and cost efficiencies in the most demanding field environments. Covering 9 kHz to 4 GHz, the MS2080A has unprecedented performance and features for a compact and portable spectrum analyzer, bringing distinct benefits to interference hunting and 5G/LTE base station installation and maintenance (I&M) applications.
The MS2080A combines fast sweep speed of 45 GHz/s, advanced user features such as AM/FM audio demodulation, and best-in-class RF performance, including +/- 1 dB amplitude accuracy. Additionally, it supports a cable and antenna analyzer, power meter, and 5G/LTE analysis to make it an ideal general-purpose instrument that addresses measurement requirements for legacy and emerging wireless networks.
An optional real-time spectrum analyzer (RTSA) that provides real-time spectrum analysis with 2 µs probability of intercept is available. The RTSA has up to 40 MHz analysis bandwidth and DANL of <-150 dBm, making it well-suited for capturing intermittent and digitally modulated signals that can be hard to identify. Spectrograms allow irregular and drifting signals to be captured, recorded and displayed.
The MS2080A supports a full range of measurements for 5G frequency range 1 (FR1) radios to 4 GHz, including C-band, to support I&M of 5G New Radio and LTE base stations. Gated sweep analysis for transmitter quality measurements to accurately verify FR1 carriers with 100 MHz bandwidth is provided. The MS2080A offers full-channel, power-based, and 5G/LTE modulation quality measurement-based coverage mapping for accurate over-the-air testing.
Designed for Rugged Field Use
The MS2080A is a highly durable analyzer that performs in the most challenging environments. It is the only instrument in its class to provide 5 W of continuous RF input overload protection, preventing costly damage to the instrument’s front-end when used close to high power transmitters or in high signal level environment.
A large 10-inch 1280 x 800 resolution display meets the demanding IK08 specification for direct knocks and drops. Common functions are always accessible from the MS2080A display, and side menus collapse to maximize graphical results.
A soft case provides IP52 environmental protection to safeguard the instrument during transport or rain. Weighing less than 4 kg, the MS2080A is small, compact and easy to carry.
