Anritsu Company announced that e2ip technologies, a human-machine interface and smart surface solutions innovation leader, has purchased Anritsu ShockLine™ ME7868A modular 2-port vector network analyzers (VNAs). e2ip is using the ME7868A VNA to confirm/validate performance of its printed 5G smart surfaces, an innovative signal distribution technology that optimizes 5G network performance for both indoor and outdoor applications.
The unique design of the ME7868A made it the best suited test solution for the e2ip 5G Smart Surface. Its modular, 2-port design allows the VNA to conduct highly accurate magnitude and phase on the 5G Smart Surface, a thin sheet with conductive ink strategically printed that manipulates mmWave signals and improves wireless connectivity and efficiency with very high specificity. One VNA port transmits the signal to the 5G Smart Surface, while the second port measures the strength of the reflected signal.
Key factors in selecting the ME7868A were its performance and portability. Integrating Anritsu’s proprietary PhaseLync™ synchronization technology allows the ME7868A VNA to conduct accurate and repeatable measurements. The design of the ME7868A allows the e2ip team to easily transport it for demonstrations and proof-of-performance of the 5G Smart Surfaces.
“The portability of the ShockLine ME7868A allows e2ip to demonstrate the operational cost savings benefits of 5G Smart Surfaces for infrastructure management in a variety outdoor and indoor settings,” said Anna-Marie Marasliyan, vice-president technology, product and marketing at e2ip technologies.

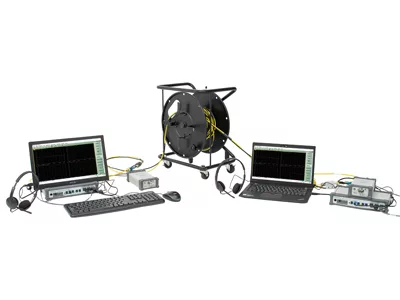

Consisting of two MS46131A 1-port VNAs, the ME7868A VNA uses the MS46131As as portable VNA ports to deliver vector transmission measurements over longer lengths and at a lower cost than conventional 2-port VNAs. As the first modular-port-based VNA, the ME7868A eliminates the need for long port cables to measure transmission over distance.
PhaseLync enables two MS46131A VNAs to conduct full vector S-parameter measurements over wide distances of up to 100 meters. PhaseLync improves dynamic range and stability of S-parameter measurements by eliminating the need for long cables with conventional benchtop VNAs.
Meeting Test Needs of Emerging Technology
The modularity and performance of the ME7868A met the stringent test requirements of e2ip technologies. The printed 5G smart surface is an emerging technology in surface electromagnetics that re-shapes electromagnetic propagation. A 5G smart surface essentially enhances wireless network deployment applications by filtering, blocking, or reflecting RF signals emitted at a selected frequency, including new 5G networks, while remaining transparent to RF signals emitted at other frequencies.
A 5G smart surface helps to extend and evenly distribute signals to low coverage and dead zones to optimize connectivity. They can act as a band-stop, band-pass, reflector or diffuser of signals at varying angles. These properties can then be used to enhance the propagation of mmWave signals and help improve the overall reliability of the network infrastructure.
Products such as 5G smart surfaces are integral to the deployment of 5G in both urban and rurual areas. They act as a passive repeater (no power source) that serves as a means for signal transmission in congested areas that are less than ideal for mmWave frequencies and are not suitable for base stations or DAS. It is a more cost-efficient approach for networks to achieve key performance indicators.
