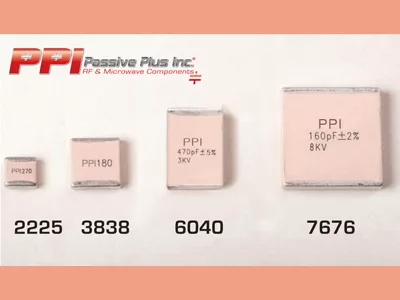

Passive Plus, Inc. (PPI) offers a series of larger case size capacitors with a High Q, high RF current/voltage with low ESR/ESL and ultra-stable performance characteristics. These capacitors can be used as bypass, coupling, tuning, impedance matching or DC blocking components for HF/RF power amplifiers, transmitters, antenna tuning, plasma changes and medical equipment applications. The larger case sizes are designed and manufactured to meet the requirements for MIL-PRF-55681 and MIL-PRF-123, and are available in two dielectrics* (P90 or NP0); three different terminations: magnetic (100 percent Sn – solder over nickel plating), non-magnetic (100 percent Sn – solder over copper plating) and tin/lead (90 percent Sn 10 percent Pb – solder over nickel plating).
*Depending on case size
