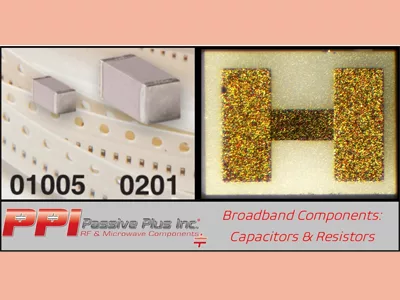

Passive Plus, Inc. (PPI) has partnered its broadband capacitors and broadband resistors for similar case size and footprint to meet your high frequency needs. The 01005BB104 (100 nF) broadband multilayer ceramic capacitor is complemented by the 1209 broadband resistor and the 0201BB104KW160 broadband multilayer ceramic capacitor is complemented by the R35-2010BB50R00FR1QE broadband resistor.
01005BB104MW6R3 |
R35-1209BB50R00FR1QC |
||
Capacitance: |
100nF |
Resistance: |
50Ω |
Size: |
.010” x .005” |
Size: |
.012” x .009” |
WVDC: |
6.3V |
Power: |
50 mW |
TCC: |
±15%, (-55°C to +85°C) |
TCC: |
-55˚C to +150˚C |
Typical Operating Frequency: |
16 kHz (-3dB point) to >62 GHz |
Typical Operating Frequency: |
DC to 67 GHz |
Insertion Loss: |
< 1 dB |
Insertion Loss: |
3.5dB ± 2dB typical |
Termination: |
Tin Plated over Nickel Barrier (RoHS) Compliant |
Metallization: |
A=Tantalum/Palladium/Gold (Ta/Pd/Au) R=Titanium/Platinum/Gold (Ti/Pt/Au) |
0201BB104KW160 |
R35-2010BB50R00FR1QE |
||
Capacitance: |
100nF |
Resistance: |
50Ω |
Size: |
.020” x .010” |
Size: |
.020” x .010” |
WVDC: |
16V |
Power: |
100 mW |
TCC: |
±15%, (-55°C to +125°C) |
TCC: |
-55˚C to +150˚C |
Typical Operating Frequency: |
16 kHz (-3dB point) to >40 GHz |
Typical Operating Frequency: |
DC to 67 GHz |
Insertion Loss: |
< 1 dB typical |
Insertion Loss: |
3.5dB ± 2dB typical |
Termination: |
Tin Plated over Nickel Barrier (RoHS) Compliant, Gold, or Tin/Lead (90%Sn/10%Pb) |
Metallization: |
A=Tantalum/Palladium/Gold (Ta/Pd/Au) R=Titanium/Platinum/Gold (Ti/Pt/Au) |
