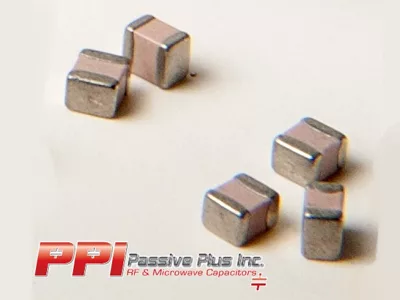

Passive Plus Inc. (PPI) is now offering Traditional NP0, High-Q 0505 (0.055” x 0.055”) capacitors for wireless broadcasting equipment, mobile base stations, GPS, MRI and radar applications; are available in Magnetic or Non-Magnetic 100 percent RoHS Tin or Tin/Lead terminations (90 percent Sn 10 percent Pb solder, SnPb 90/10) terminations; and are designed and manufactured to meet the requirements for MIL-PRF-55681 and MIL-PRF-123.
|
0505C/P series: Size: 0.055” x 0.055” Value Range: 0.1 pF – 1000 pF WVDC: 150V Extended WVDC: 300 V TCC: C: 0 ± 30 PPM/°C (-55°C to 125°C) 0 ± 60 PPM/°C (>125˚C to 200˚C) P: +90 ± 20 PPM/°C (-55°C to 200°C) |
Magnetic Design Kits DKD0505C01 .1–2.0 pF DKD0505C02 1.0-10 pF DKD0505C03 10-100 pF DKD0505C04 100–1000 pF DKD0505P01 .1-2.0 pF DKD0505P02 1.0-10 pF DKD0505P03 10–100 pF |
Non-Magnetic Design Kits DKD0505C05 .1-2.0 pF DKD0505C06 1.0-10 pF DKD0505C07 10-100 pF DKD0505C08 100–1000 pF DKD0505P05 .1-2.0 pF DKD0505P06 1.0-10 pF DKD0505P07 10-100 pF |
Engineering Design Kits for the 0505C/P case size are available in magnetic and non-magnetic terminations.
