RF MEMS SFB DESIGN

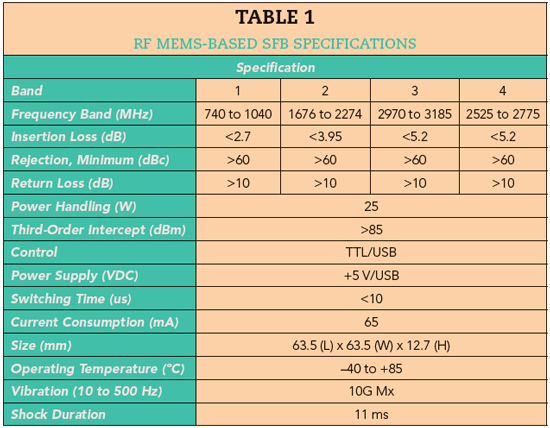

The four-channel blocking SFB shown in Figure 3 uses two RF MEMS SP4T switches from Menlo Microsystems (MM5130) and four bandpass filters manufactured by 3H Communications Systems. The SFB contains all the components required to provide the drive voltages to turn on the switches, as well as a programmable microcontroller to control switching via either TTL or a PC application using USB control. The SFB measures 2.5 in. x 2.5 in. x 0.81 in. without connectors and weighs 6.5 oz. The specifications for the SFB are shown in Table 1.

Figure 4 MEMS SFB control circuit.

The RF MEMS switches are activated via electrostatic force, requiring a high-voltage source for switching. The gate bias of the switch is set at 0 VDC, which places the metal cantilever beam in a non-deflected (off) state. Thus, the path between RF input and output is isolated with an air gap, similar to a traditional mechanical relay. When the gate is set to its actuation voltage of +88 V, the electrostatic force between the gate and cantilever beam is strong enough to cause it to deflect downward, forming a connection with the contact and closing the switch. This is the deflected (on) state. For the purpose of this design, the +88 V for both SP4T switches is supplied by an Analog Devices LT3482 step-up DC/DC converter that can provide up to 90 VDC output with about 2 mA of current (see Figure 4). Since the switches are electrostatic, requiring only nanoamps of current to operate, an entire switch matrix can be biased with a single boost circuit.

The output current of the LT3482 is converted to a filtered voltage through a fixed load resistor and bypass capacitor that is stable over the temperature range of the SFB. A Microchip HV513 8-channel high- voltage driver routes the +88 V to each of the switch’s four gate control pads. The input to the HV513 is managed by an Atmel ATSSAMD11 microcontroller, which can be controlled via USB or by direct +5 V TTL control. Other interface schemes can easily be implemented.

Layout

The input SMA connector routes the signal to the center of switch 1 (see Figure 5). As the switch outputs are in the corners of the chip and need to maintain a ground-signal-ground (G-S-G) arrangement for best isolation, a grounded coplanar waveguide (GCPW) interconnection is used. This yields the best isolation while providing an optimum mounting configuration for the switch and bandpass filters. Two rows of vias are used on the ground sides of the GCPW that work to 18 GHz.

To avoid mismatch effects, sharp bends in the GCPW lines are avoided, with swept bends at least 3x the line width. As the board incorporates RF and DC components, the top layer is typically an RF material such as Rogers 4003C, especially for operation at higher frequencies; the other board layers are typically FR-4. In this design, which only operates to 4 GHz, Isola FR408HR is used for both an RF and DC substrate, since it is a more stable and high performance version of FR-4. 6 mil diameter micro-vias are used under the switch to ensure optimum ground and maintain GCPW into the device.

Design Considerations

Depending upon the end application, it is necessary to choose a filter technology and topology to meet the minimum requirements. In this case, the filter vendor uses a proprietary technique where the filter has more zeros than poles, as opposed to traditional filter theory which requires the maximum number of zeros to be one less than the number of poles (i.e., for a n-section filter, the maximum number of zeros would be n-1). This causes the filter skirts of the passband to roll sharply, since many more zeros can be placed. As a consequence, the greater number of transmission zeros enables significantly smaller filters. These small filters used with the miniaturized, high performance RF MEMS switches reduce the size of the SFB significantly. To customize a uniquely different frequency response for each filter band, a lumped element technology with discrete zeros was chosen.

Figure 5 SP4T RF MEMS switch layout (a) and zoom in of trace routing to the SFB (b).

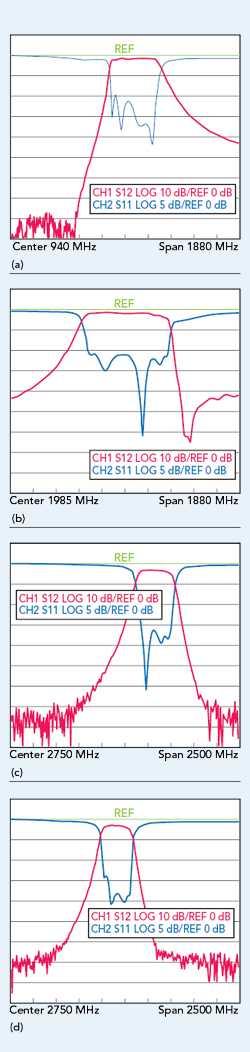

Figure 6 Insertion loss and return loss for all 4 SFB bands: Band 1 (a), Band 2 (b), Band 3 (c), Band 4 (d).

PERFORMANCE

The insertion loss meets the target requirements and is slightly better than simulated (see Figure 6). The RF MEMS switch for this application adds almost negligible insertion loss to the overall SFB performance, using a much smaller and less complicated filter design than would normally be possible using solid-state switches.

The RF MEMS switch selected for this design exhibits a low insertion loss of 0.15 dB at 4 GHz and 0.75 dB at 12 GHz, a third-order intercept greater than 85 dBm and the capability to handle 25 W RF input power. Since it is configured as a native SP4T, there is no need to cascade switches, which can increase loss and, for high-power applications, the thermal load.

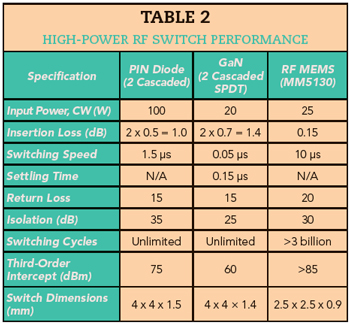

A comparison of the RF MEMS switch used in this design with traditional solid-state high-power switch technologies is shown in Table 2. It is very challenging to find comparable SP4T monolithic switches that can handle greater than 20 W, so this comparison assumes the use of multiple cascaded SPDT high-power switches on both the input and output of the filters to create 1:4 multiplexing.

The RF MEMS switch used in this design is uniquely manufactured with high temperature electrodeposited metal alloys. This addresses a well-known problem experienced by many previous MEMS switches, where the switch actuator tends to deform over time and high temperature, reducing operating life. In this case, the electroplated metal alloy has a yield strength orders of magnitude greater than gold, which has been commonly used in the past for MEMS switch actuators. The results demonstrated in this SFB design show that these high temperature metal alloys are necessary to provide highly conductive and low loss signal paths and perform at elevated power levels, where some amount of self heating is inevitable. Figure 7 shows a thermal image of the SFB, including the RF MEMS switch. Operating with a 10 W CW input, it exhibits only a 20°C temperature rise above ambient.

Figure 7 Thermal profile of RF MEMS SFB under a 25 W CW load.

The low losses exhibited in this SFB compared to solid-state designs translate to a significantly smaller and lighter weight assembly, since heat sinks or more complicated thermal management can be reduced - even eliminated. As an example, for an SFB on the transmit path, where the radio needs to deliver 25 W to the antenna, a solid-state version would require the PA to generate an extra 2 to 2.5 dB of power into the SFB compared to the RF MEMS version. Not only does this add cost and complexity to the PA, it forces the designer to manage 10 to 14 W of extra heat in the radio.

SUMMARY AND DIRECTION

There are many ways to optimize the design. First, the high-voltage DC control section can be integrated into a single chip with minimal external passive components. There are many variants for high voltage drivers that can scale to 16, 32 or higher channels for applications where there are multiple SFBs to control or SFBs with more than four channels.

Additionally, the design can easily be scaled to accommodate a different number of frequency bands (i.e., more channels) and higher frequencies. For example, the SFB in this article can be increased from four to eight channels with center frequencies from DC to 18 GHz with a small penalty in insertion loss and board space. The savings in power dissipation and insertion loss for the overall SFB becomes even greater compared to solid-state when adding more channels.

Finally, there are other ways to take advantage of the extremely low RonCoff characteristics of an RF MEMS switch. The on-resistance (Ron) of the metal-to-metal contact is very small, typically less than 0.5 Ω, which provides the lowest possible insertion loss. The switch also has very low levels of parasitic capacitance in the off-state (Coff), typically less than 15 fF, providing very low signal leakage when open. These unique characteristics provide opportunities where the switch can be used to select different resonators and “actively tune” a resonator to different frequency bands, employing one or multiple switch channels to connect series or shunt elements to the resonator. This type of tunable filter is extremely challenging using solid-state switches, given the non-ideal “on” and “off” characteristics of a transistor. This is especially true for high-voltage and high-power applications that stack transistors, which can significantly degrade the resonator Q-factor. Using RF MEMS for tuning enables further reduction in space over a straight SFB while maintaining very high Q.

Designers have a variety of choices when choosing an SFB. Most of the filter characteristics are determined by the switching element as well as the filter response required by the application. The RF MEMS switch is a new entrant in this market. Owing to its inherently superior electrical characteristics, it provides an appealing alternative for many RF subsystems, especially those where reducing the SWaP are mission critical.
