Fujitsu Limited and Fujitsu Laboratories Ltd. announced the development of a GaN high electron mobility transistor (HEMT) power amplifier (PA) for use in W-Band (75 to 110 GHz) applications. Fujitsu has achieved 4.5 W/mm of gate width, the world's highest output density at W-Band and has confirmed a 26 percent reduction in energy consumption compared to conventional technology.
To realize long distance, high capacity wireless communications, a promising approach is to utilize W-Band and other high frequency bands that encompass a broad range of usable frequencies and increase output with a PA. At the same time, demand exists for improved efficiency in PAs to mitigate the increased power consumption of communication systems. Fujitsu's development succeeded in developing a W-Band PA that offers both high output power and high efficiency, improving transistor performance through the reduction of electrical current leakage and internal GaN HEMT resistance.
Fujitsu anticipates that using this PA between wireless communication systems in two locations will achieve high bandwidth communications at 10 Gbps over a distance of 10 km.
Part of this research was carried out with support from Innovative Science and Technology Initiative for Security, established by the Acquisition, Technology & Logistics Agency (ATLA), Japan Ministry of Defense.
Details of this technology will be announced at the 12th International Conference on Nitride Semiconductors (ICNS-12), to be held in Strasbourg, France, from July 24 until July 28.
Development Background
Wireless data traffic from mobile communications has increased dramatically over the last few years. With the spread of 5G and IoT devices, it is predicted to increase at an annual growth rate of 1.5x until the year 2020. To build this sort of high capacity next-generation wireless communications network, attention has been focused on wireless communication technology using W-Band. The range of frequencies that can be used in W-Band is very broad, and because communication speed can be rapidly increased in this band, it is well suited for this kind of high bandwidth wireless communication.
Conventional wireless communications technology, has allowed for performance of several Gbps over distances of several kilometers, but achieving an even greater increase in distance and capacity utilizing W-Band demands further increases to the output of PAs to boost signals during transmission.
Issues
To increase distance and capacity, it will be necessary to expand the frequency bandwidth that can be amplified while simultaneously supporting modulation methods that can transmit more information within the same frequency bandwidth, with a requirement to have less distortion when the signal is amplified. Another pursuit is keeping in check the energy consumption of communication systems that accompanies greater distances and capacities, and the improved energy efficiency in PAs.
About the Newly Developed Technology
In order to both increase the distance and capacity of wireless communications and decrease energy consumption with indium-aluminum-gallium-nitride (InAlGaN) HEMTs, Fujitsu has developed two technologies that effectively reduce internal resistance and current leakage. Features of the newly developed technologies are as follows:
Figure 1 Schematic cross-sectional view of GaN-HEMT device structure
1. Technology to reduce internal resistance
Fujitsu has developed device technology that can reliably reduce resistance to one tenth that of previous technologies when current flows between the source or drain electrodes and the GaN HEMT device. The technology utilizes a manufacturing process that embeds GaN plugs directly below the source and drain electrodes, which generate electrons at high densities.
It is necessary to transport the electrons that come from the source electrode to the two dimensional electron gas field as smoothly as possible. The structure of the previous technology causes the electron supply layer to become a barrier, and internal resistance increases between the source electrode and the two dimensional electron gas. By applying this new technology, Fujitsu succeeded in running high currents through the transistor with significantly less resistance.
Figure 2 Comparison of transistor characteristics
2. Technology to control current leakage
A current leakage occurs when the two dimensional electron gas, which moves at high speed on the boundary at the top of the channel layer, takes a detour below the gate when the transistor is in its off state. This leakage causes deterioration in the operational performance of the power amplifier. Normally, it is possible to reduce current leakage by placing a barrier layer beneath the channel layer, but in that case the amount of two dimensional electron gas also decreases, and leads to a reduction of the drain current.
This new technology maintains high drain currents by effectively distributing InGaN to create a barrier layer below the channel layer. This reduces electron detours during operation, successfully providing significant reductions in current leakage.
Effects

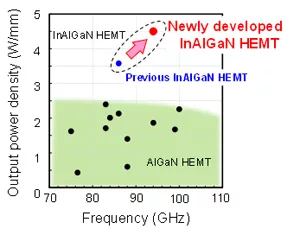

The previous world record for PA output density at W-Band was 3.6 W/mm of gate width with technology developed by Fujitsu Laboratories. This has improved significantly with the newly developed technology, which delivers power output of 4.5 W/mm for a PA designed to operate at 94 GHz. In addition, this new technology achieved a reduction in energy consumption of 26 percent compared to the previous technology through a reduction in current leakage. It is anticipated that the use of this PA will allow the achievement of high capacity, long distance wireless communications between two connected systems at different locations at over 10 Gbps and at distances greater than 10 km.
Future Plans
Fujitsu aims to apply this technology broadly to the development of PAs for purposes that call for wireless communications that offer long range and higher capacity, while offering easier installation than fiber optics. The goal is to commercialize this technology in high speed wireless communication systems by 2020, with an aim to employ it in such situations as restoring communications when fiber optic cables have been severed by natural disasters or as a way of setting up temporary communications infrastructure when holding events.
