Richardson RFPD, Inc. announced the availability and full design support capabilities for a new 30 to 520 MHz tunable bandpass filter and associated evaluation board from NewEdge Signal Solutions, Inc.

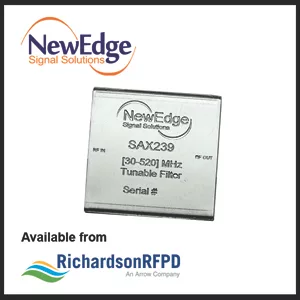

The SAX239 offers an industry-leading combination of power handling (+33 dBm) and DC power consumption (< 100 mW) in a small form factor. The new device also features low insertion loss and fast-tuning across the band to 1.0 MHz resolution.
The new device is designed for tactical communications applications and offers full environmental qualification, including vehicular (to MIL-STD-810G, Method 514.6) and jet fighter (to MIL-STD-810F, Method 514.5G).
An associated evaluation board includes the filter and the interface required to allow control from any PC.
Additional key features of the SAX239 include:
- Insertion loss: < 4.5 dB (typ.) over the full 30 to 520 MHz band
- Step size: 1.0 MHz (30 to 88 MHz) / 2.0 MHz (90 to 520 MHz)
- Tuning control: Serial [SPI]
- Tuning speed: 40 µs (max.) / 25 µs (typ.)
- IIP3: +45 dBm
- Bandpass bandwidth: 3.5 percent typical
- Bandpass VSWR: 1.5:1 typical: 2.0:1 max
- Dimensions: 1.2 in x 1.2 in x 0.25 in
To find more information, or to purchase these products today online, please visit the SAX239 and SAX239_EVB webpages.
