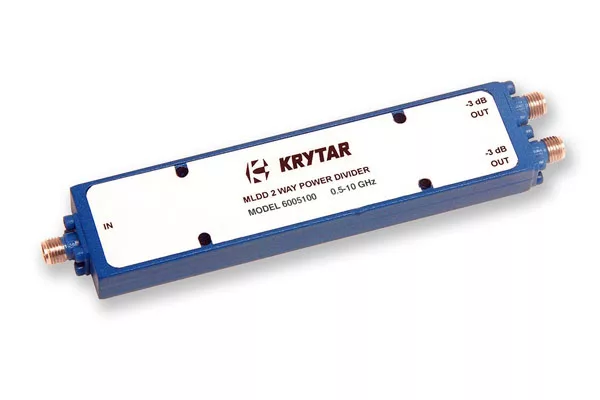

KRYTAR, Inc. announces a new 2-way power divider offering high performance over the broadband frequency range of 0.5 to 10.0 GHz (UHF- through X-Bands) in a compact package. The new matched-line directional divider (MLDD) 2-way power divider offers the ultimate solution for emerging RF/microwave designs and test and measurement applications including wireless communications, radar, satellite communications and more.

KRYTAR’s technological advances provide excellent operating performance of this new 2-way power divider. Model 6005100 covers the full frequency range from 0.5 to 10.0 GHz with > 19 dB isolation and ±0.2 dB of maximum amplitude tracking, with maximum phase tracking is ±4 degrees. The 2-way divider exhibits insertion loss of < 1.0 dB across the full frequency range. Maximum VSWR is 1.40. Input power rating is 10 watts with 2:1 load VSWRs. Units with tighter amplitude and phase tracking specifications can be supplied.

KRYTAR’s new Model 6005100 power divider offers excellent solutions for broadband and multi-frequency applications in a single package. The power divider’s compact package measures just 7.75 x 1.00 x 0.52 in., weighs only 7 ounces and comes with standard 3.5 mm coaxial female connectors.

KRYTAR’s MLDD 2-way power dividers are a new class of patented directional devices. Targeting applications including wireless communications, radar, electronic warfare systems and complex switch-matrix applications, for example, KRYTAR has used its proprietary design to produce a wide assortment of MLDD dividers with excellent performance over ultra-broadband frequencies. The directional couplers can be manufactured to meet ridged military specifications.
