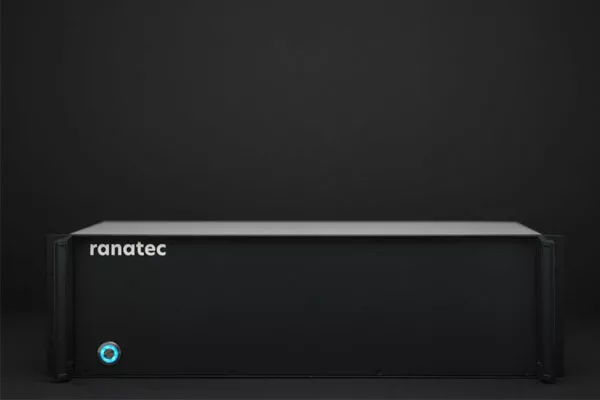

Ranatec, a part of Qamcom Group and progressive creator of test and measurement equipment for RF and microwave applications, introduced the digitally tunable RI 282 bandpass filter. The new active filters, variants of Ranatec’s series of tunable band reject filters, provide exceptional performance and are digitally tunable between 600 to 6000 MHz.
The newest addition to Ranatec’s broad product offering, the next generation filters are the latest Ranatec innovation empowering leading electronics manufacturers to perform the enhanced testing that places their most advanced products in pole position for market.
High performance RI 282 electronically tunable bandpass active filters are fully equipped to conform to all existing sub-6 mobile bands, achieved by benchmark microwave design, digital signal processing and use of state-of-the-art components. The filter can be selected at ordering stage with high-end requirements that will be unaffected over the complete tuning range.
APPLICATION
- For testing of wide frequency range devices when out-of-band signals need to be suppressed.
- For generating a pure input signal with low noise outside of the band.
- A table with text and numbers
- Description automatically generated.
RI 281 FEATURES & PERFORMANCE
- Combined 20 and 100 MHz bandwidth
- Frequency tunable between 600 to 6000 MHz
- Filter characteristics selected in runtime
- Remote control via LAN
- 75 MHz filter slopes
- 50 dB suppression
- Adjustable gain
- Rack mountable.
