Herotek
Limiter
Herotek offers a wide range of high-power limiters. Model LS00105P200A is a 200 W CW limiter operating from 10 MHz to 500 MHz with 1 kW peak, 1 microsecond pulse width limiting protection. It has a low insertion loss of 0.8 dB and 2.2:1 VSWR with typical leakage of +20 dBm at 200 W CW input. This limiter has built-in input and output DC blocks. It comes in a hermetically sealed package with removable connectors for drop-in assembly and designed for both military and commercial applications.
HYPERLABS
Ultra-Broadband Test and Measurement Components
HYPERLABS is a leading provider of high performance, ultra-broadband test and measurement components including 63 GHz linear amplifiers. Designed to drive data in 224 Gbps applications, HYPERLABS components offer industry-best bandwidth to maintain optimized eye patterns. Since 1992, HYPERLABS has built a reputation as an industry leader in broadband component designs including baluns, bias tees, DC blocks, power dividers, and more. Visit HYPERLABS at IMS booth 1749.
Insulated Wire Inc.
Ultra Low-Loss Coaxial Cables and Assemblies
Insulated Wire Inc. manufactures a broad range of ultra low-loss coaxial cable and assemblies operating to 110 GHz. Our unique laminated EPTFE dielectric provides exceptional attenuation performance, which translates to excellent power handling, a requirement for various commercial and military applications. Primary high-power cable types are 2801, rated at 1.9 kW at 1 GHz, 4806 able to handle 3.2 kW 1 GHz and our 7506, which offers 10 kW at 1 GHz capability. Interfaces available include C, SC, LC, HN, 7/16, 1 5/8 in. and 7/8 in. EIA flanges.
Ironwave Technologies
Non-Blocking Switch Matrix
Ironwave Technologies company introduces Mu-del Electronics’ 16 × 64 non-blocking switch matrix, 16MDMS-2600-64NB/49. Designed for top performance and versatility, this solid-state switch matrix offers outstanding features and benefits for a wide range of applications. Offering touchscreen and remote interfacing with a frequency range of 20 MH to 6000 MHz, 16 inputs and 64 outputs, this switching matrix is designed to serve a wide variety of applications. This switch matrix also features 45 dBm minimum isolation and unity gain with a flatness of ±3 dB.
JFW Industries
Benchtop Attenuator
Model 50BA-048-95 is a 50 Ω benchtop attenuator assembly containing two solid-state step attenuators. The attenuators have attenuation range of 0 to 95 dB by 1 dB steps and operate from 200 MHz to 8.4 GHz. The attenuator can be controlled manually or remotely. Its current attenuation setting is displayed on the front panel.
JQL Technologies Corp.
Isolators & Circulators
JQL continues to expand their product base through innovation and launched a unique design of coaxial isolator and circulator in the frequency 27 to 31 GHz. This design has an integral housing with connectors. This device has extremely low insertion loss over the broad band, stable over temperature range and almost zero RF leakage, makes it ideal for applications such as space, airborne terminals, man-pack radios and satcom-on-the-move.
KR Electronics
Positive Train Control Bandpass Filters for Railroad Industry
NIC’s positive train control filter series, designed for the railway industry, plays a critical role in minimizing RF interference between ITC and ACSES bands within the frequency range of 160 to 460 MHz. These IP54 and IP67 rated filters feature N Type connections and handle up to 100 Watts CW power. They are available for quick turn delivery, ensuring reliable railway communication. Please stop by Booth #433 for additional information.
Kratos General Microwave
mmWave Control Components and Integrated Assemblies
General Microwave Corporation is a key partner with major OEMs and primes, having been chosen for our broad and comprehensive understanding of mmWave technologies. We offer catalog mmWave phase and amplitude control modules, which includes IQ modulators, phase shifters, switches, attenuators, as well as custom integrated assemblies operating in the 18 to 50 GHz frequency range. If it’s a catalog unit or a highly customized mmWave assembly designed specifically for your high performance system needs, contact General Microwave.
Krytar
Butler Matrices
The new Krytar butler matrix family uses Krytar’s high performance 90- and 180-degree hybrid couplers providing superior phase accuracy, amplitude imbalance, stability, high isolation, low insertion loss and VSWR and repeatability. Offering coverage of multiple microwave bands, from 0.5 to 40 GHz, a Krytar butler matrix is the ideal choice for antenna array beamforming, 5G NR testing, mmWave testing, MIMO testing, multipath simulation and performance evaluation and many other applications.
KVG Quartz Crystal Technology GmbH
New Website With Outstanding Products
Superior products deserve superior presentation: KVG’s new website presents their highly stable products with best phase noise on the market. The newest high-end product of KVG is the high performance 100 MHz oscillator O-22-ELPN with extraordinary low phase noise of -140 dBc/Hz at 100 Hz and -190 dBc/Hz noise floor. Visit our website and learn more about KVG and our products.
LadyBug Technologies
New Power Sensor Options
LadyBug Technologies’ LB5900 series power sensors with LAN and PoE capabilities offer fast, accurate and traceable measurements. Covering frequencies from 4 kHz to 75 GHz and featuring triggering and other advanced functions, these sensors are well-suited for tower, satcom and manufacturing test applications. Security options such as military, which prevent storage of information in the sensor, and for applications that require storage of settings or data within the sensor, Option SAN that securely erases stored data upon command.
Logus Microwave
SPDT Manual Toggle Coaxial Switches
High reliability for your RF/microwave requirements: SOC12EMT performs from DC to 18 GHz with a VSWR of 1.5:1 maximum, insertion loss of 0.5 dB maximum isolation of 60 dB minimum SOC12EKT performs from DC to 40 GHz with a VSWR of 2.0:1 maximum, insertion loss of 0.9 dB maximum and isolation of 50 dB minimum. Small quantities are available from stock.
LPKF
Direct PCB Laser Processing Systems
The latest LPKF ProtoLaser systems provide direct laser processing for flexible, rigid-flex and rigid RF/microwave materials. Advantages of the laser technology includes rapid metal removal for fine pitch traces/spacing, pristine drilling and cut quality, controlled laser pocket or channel engraving and user adjustable settings for new materials variations. Sophisticated software allows development and on-demand production within your lab creating precision devices in only minutes.
Marki Microwave
Surface-Mount MMIC Tunable Filter
The MFBT-00003PSM is a surface-mount MMIC tunable filter for adaptive filtering applications. It offers separate lowpass and highpass tuning capability, allowing users to create bandpass filters with variable center frequencies and percent bandwidths. Performance features include low return loss in both the passband and stopband, low insertion loss and high stopband rejection, and high IP3 relative to other tunable filters. Available as a 4x4 mm plastic QFN, it is suited to replace much larger switched filter banks.
Maury Microwave
Characterization Solutions, Components and Services
Our mission is to give our customers confidence in their RF through THz measurements and models. We accomplish this by providing best-in-class and fully-proven characterization solutions, components and services. We help the world’s leading manufacturers in the wireless technology chain build better products and bring them to market faster. Visit Maury Microwave at IMS2024, booth #704.
Menlo Microwave
System-In-Package Relay
MM1205 System-In-Package Relay targets high-density Industrial, Telecommunications, Medical, Test and Measurement Applications. The MM1205 is a single component solution that combines the high isolation of a traditional low-signal mechanical relay and the reliability of a semiconductor relay. Superior RF Performance: Wide frequency response from DC to 3 GHz, unmatched RF power handling up to 25 W (CW), 200 W (pulsed), expanded application versatility with higher frequency signal integrity and capacity.
MIcable Inc.
Wideband High Accuracy Butler Matrices
MIcable 0.6~7.25 / 0.6~5 / 2.4~7.25 / 24~43 GHz 4×4 and 8×8 wideband high accuracy butler matrices can transfer the signal reciprocally from any of 4 or 8 ports to any of the other 4 or 8 ports. They have unbelievable super excellent phase accuracy, amplitude balance, stability and repeatability over very wide bandwidth. These advantages make them ideal for 5G, Wi-Fi 6E/Wi-Fi 7, MIMO testing, signal multipath simulation, antenna array beamforming and IoT, etc.
Cryogenic Component Solutions
MIcable cryogenic product series provides complete connection solutions for cryogenic applications such as quantum computers. The products mainly include cryogenic cable assemblies, coaxial adapters and fixed attenuators. The components have the advantages of small size for high-density arrangement, hermetic seal feature for avoiding air inflow and gas leakage, low heat conductivity for minimizing inflow of the heat from the high temperature end, as well as excellent electrical performance and high working frequency up to 18 GHz.
Mician GmbH
μWave Wizard™ Filter Workbench
Filter Workbench is a powerful quasi-automated filter synthesis add-on to Mician’s renowned μWave Wizard™ product line. Tailored to assist users in designing and optimizing microwave filters of moderate relative bandwidth, Filter Workbench centers around a user-generated coupling matrix as input. Its intuitive user interface accommodates a diverse range of filter topologies, from simple waveguide iris filters to intricate cross-coupled combline filters. As a result, Filter Workbench provides a complete schematic layout with tiered subcircuits, and associated goal functions based on filter specifications.
Micro Lambda Wireless Inc.

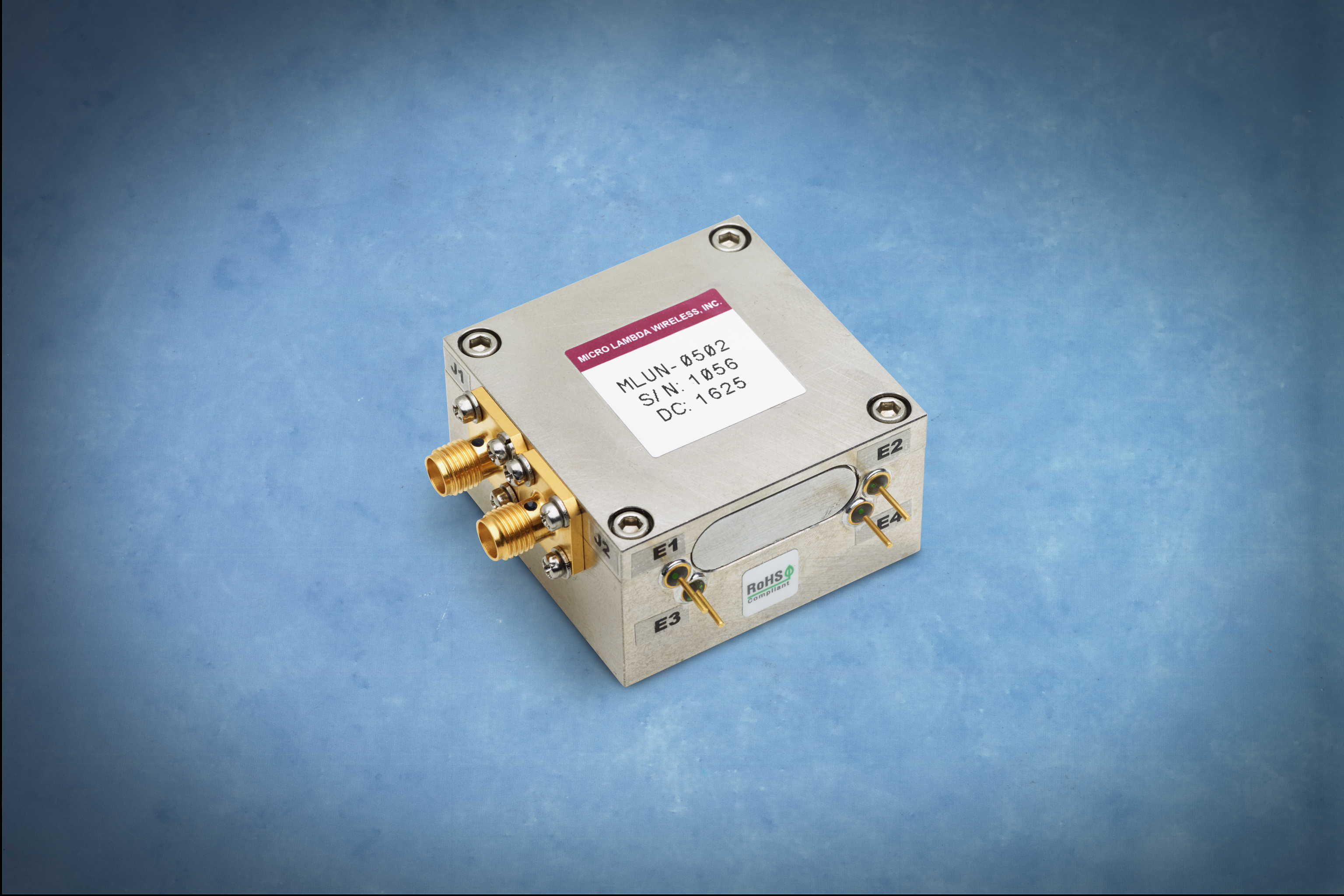

“Ultra-Notch” YIG-Tuned Bandreject Filters
MLUN-Series “Ultra-Notch” YIG-Tuned Bandreject Filters” with 50 dB notch depths at 500 MHz and 60 dB notch depths starting at 2 GHz. Standard models cover the 500 MHz to 2GHz, 2 to 6 GHz, 6 to 18 GHz and 2-18 GHz. Custom specified tuning ranges can be supplied on special order. Standard model operates over the °0 to +65°C temperature range with Military versions covering -40° to 85°C are available.
Millibox
Affordable sub-THz OTA Test Setups to 330 GHz
MilliBox, the leader in benchtop mmWave OTA test systems, has integrated Eravant’s frequency extenders into a complete solution. The new MBX32E allows OTA testing up to 330 GHz, where coax cabling becomes impractical. The test setup includes a benchtop anechoic chamber, a programmable 3D positioner and a pair of STO-series compact frequency extenders mounted to the positioner and probe. This combination is ideal for 6G and sub-THz applications.
Mini-Circuits
Coaxial Filter Passes
Mini-Circuits’ model ZVBP-40600-K1+ is a coaxial cavity bandpass filter with low loss passband of 37.7 to 43.5 GHz. Typical passband insertion loss is 1.8 dB with typical passband return loss of 18 dB. Lower stopband rejection is typically 88 dB from DC to 36.6 GHz while upper stopband rejection is typically 79 dB from 44.6 to 55.0 GHz. The RoHS-compliant 50 Ω filter is well suited for cellular 5G n259 and n260 bands and is equipped with 2.92 mm female coaxial connectors.
Surface-Mount Filter
Mini-Circuits’ model WSBP-26G+ is a substrate-integrated-waveguide (SIW) bandpass filter with passband of 25 to 27 GHz. Passband insertion loss is typically 2.3 dB while passband return loss is typically 12.0 dB. Stopband rejection is typically 41 dB or better from DC to 23 GHz and typically 35 dB from 31 to 32 GHz. Suitable for 5G n258 band applications, the 50 Ω surface-mount filter measures 1.20 × 0.210 × 0.015 in. (30.54 × 5.33 × 0.38 mm) and weighs 0.35 g.
Signal Generator
Mini-Circuits’ model SSG-44G-RC is a versatile signal generator that provides CW and pulsed outputs (as narrow as 0.5 μs) from 100 MHz to 44 GHz. It offers signal levels from -40 to +17 dBm at a 2.92 mm female output connector and can operate in swept frequency and frequency hopped modes. Typical harmonic levels are -30 dBc, with typical spurious content of -40 dBc. The compact signal generator, which can be controlled via USB or Ethernet bus, includes full software support.
Variable-Gain Amplifier
Mini-Circuits’ model ZVA-18443VG+ is a coaxial amplifier with adjustable gain range of 30 to 47 dB from 18.0 to 43.5 GHz. Featuring 2.92 mm female input and output connectors, gain can be tuned by analog or TTL control. At minimum gain, typical output power at 1 dB compression is +28 dBm while at maximum gain the saturated output power is typically +31 dBm. Ideal for aerospace/defense, satellite and test applications, the amplifier runs on a single +10 to +15 VDC supply.
LTCC Highpass Filter
Mini-Circuits’ model HFCN-3052+ is a low-temperature cofired-ceramic (LTCC) highpass filter with passband of 30.5 to 56.2 GHz. Passband insertion loss is typically 1.7 dB from 30.5 to 45.8 GHz and 2.5 dB to 56.2 GHz. Return loss is typically 14.1 dB from 30.5 to 45.8 dB and 12.8 dB from 45.8 to 56.2 GHz. Supplied in a 1206 ceramic form, the filter offers typical rejection of 21.4 dB from 0.1 to 11.2 GHz and 15 dB from 11.3 to 23.5 GHz.
Molex
Test and Measurement
Molex highlights our new high frequency products with performance up to 110 GHz. The newly released “Cardinal” line of high performance cable assemblies with Molex’s ruggedized armored VNA test cables along with standard flex cables are ideal for bench top testing. Connector options include SMA, 3.5 mm, 2.92 mm, 2.4 mm, 1.85 mm and 1.0 mm series. In addition to the cable assemblies, Molex’s new high frequency products include precision in-series and between-series adapters as well as their new line of End Launch PCB connectors.
