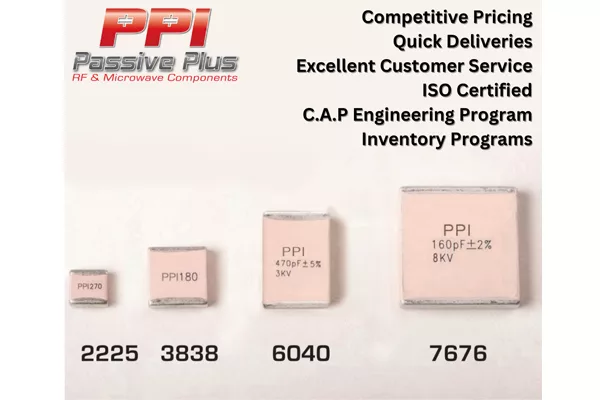

Passive Plus (PPI) offers a series of larger case size capacitors with a High-Q, high RF current/voltage with low ESR/ESL and ultra-stable performance characteristics.  These capacitors can be used as bypass, coupling, tuning, impedance matching or DC blocking components for HF/RF power amplifiers, transmitters, antenna tuning, plasma changes and medical equipment applications. The larger case sizes are designed and manufactured to meet the requirements for MIL-PRF-55681 and MIL-PRF-123, and are available in two dielectrics* (P90 or NP0); three different terminations: magnetic (100 percent Tin - solder over nickel barrier), non-magnetic (100 percent tin - solder over copper barrier) and tin/lead (90 percent tin 10 percent lead - solder over nickel barrier).

*Depending on case size

2225C/P series:

• Size:  .220” x .250”
• Value Range: 0.5 pF – 2700 pF
• WVDC: 2500 V
• Extended WVDC: 3600 V
• TCC:    \
  • C: 0 ± 30 PPM/°C (-55°C to 125°C)
  • ± 60 PPM/°C (> 125°C to 200°C)
  • P: +90 ± 20 PPM/°C (-55°C to 200°C)

3838C/P series:

• Size: .380” x .380”
• Value Range: 0.5 pF – 5100 pF
• WVDC: 3600 V
• Extended WVDC: 7200 V
• TCC:
  • C: 0 ± 30 PPM/°C (-55°C to 125°C)
  • 0 ± 60 PPM/°C (>125°C to 200°C)
  • P: +90 ± 20 PPM/°C (-55°C to 200°C)

6040C series:

• Size: .600” x .400”
• Value Range: 1 pF – 6800 pF
• WVDC: 5000 V
• Extended WVDC: 8000 V
• TCC:
  • 0 ± 30 PPM/°C (-55°C to 125°C)
  • 0 ± 60 PPM/°C (>125°C to 175°C)

7676C series:

• Size: .760” x .760”
• Value Range: 1 pF – 20000 pF
• WVDC: 5000 V
• Extended WVDC: 8000 V
• TCC:
  • 0 ± 30 PPM/°C (-55°C to 125°C)
  • 0 ± 60 PPM/°C (>125°C to 175°C)
