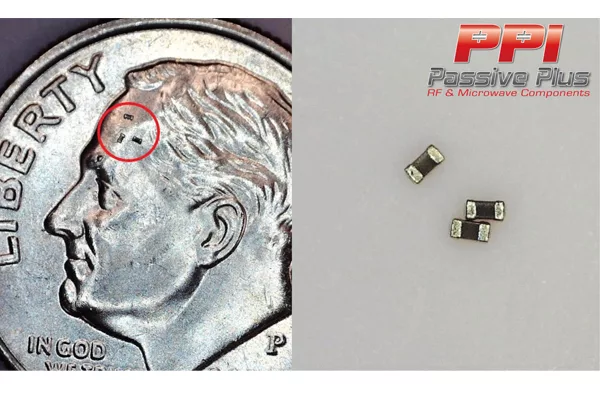

Passive Plus (PPI) has expanded its broadband capacitor line to include the industry’s smallest .010”x.005” broadband part characterized for RF performance. The 01005BB104 series has been expanded and a new part is now offered with a 10 V Rating. The 01005BB104MW100 (100 nF) broadband multilayer ceramic capacitor specifications:

Capacitance:       100 nF

Size:       .010” x .005”

WVDC:  10 V

TCC:       ±15%, (-55°C to +85°C)

Typical operating frequency: 16 kHz (-3 dB point) to > 67 GHz

Insertion Loss: < 1 dB

Termination: Tin plated over nickel barrier (RoHS) compliant.

Typical applications include optoelectronics/high speed data, transmit/receive optical subassemblies, synchronous optical networks, broadband test equipment, broadband microwave and mmWave amplifiers and oscillators.
