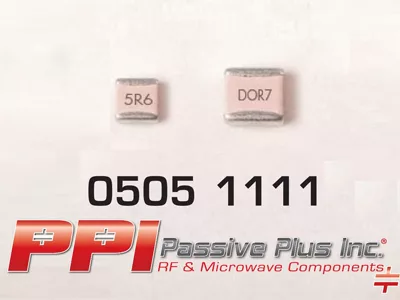

Passive Plus, Inc.'s (PPI’s) product offering includes traditional high q low ESR 0505 (0.055” x 0.055”) and 1111 (0.110” x 0.110”) multi-layer ceramic capacitors for UHF/microwave RF power amplifiers, mixers, oscillators, filter networks, low noise amplifiers and timing circuits and delay lines. These capacitors are available in two dielectrics (P90 or NP0); three different terminations: magnetic (100 percent tin - solder over nickel barrier), non-magnetic (100 percent tin - solder over copper barrier), and tin/lead (90 percent tin 10 percent lead - solder over nickel barrier); and are designed and manufactured to meet the requirements for MIL-PRF-55681 and MIL-PRF-123.

0505C/P series:

Size: .055” x.055”

Value Range: 0.1 pF – 1000 pF

WVDC: 150 V

Extended WVDC: 300 V

TCC:       C: 0 ± 30 PPM/°C (-55°C to 125°C)

                   0 ± 60 PPM/°C (>125˚C to 200˚C)

P: +90 ± 20 PPM/°C (-55°C to 200°C)

1111C/P series:

Size: .110” x.110”

Value Range: 0.1 pF – 10,000 pF

WVDC: 500 V

Extended WVDC: 1500 V

TCC:       C: 0 ± 30 PPM/°C (-55°C to 125°C)

                   0 ± 60 PPM/°C (>125˚C to 200˚C)

P: +90 ± 20 PPM/°C (-55°C to 200°C)
