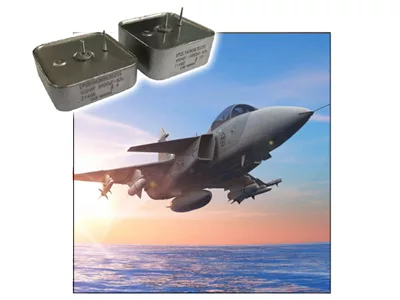

To meet the needs of military and avionics applications, Vishay Intertechnology introduced a new Wet Tantalum Capacitor that delivers the industry’s highest capacitance per voltage rating and case size for this device type. The new Vishay EP2 Wet Tantalum Capacitor offers industry-high capacitance, mechanical robustness for military and avionics systems.

Available with radial through-hole terminations with a stud mount option in the B and C case codes, the new Vishay EP2 Series can be used as an exact drop-in replacement for competing parts or as a higher capacitance alternative in a mechanically equivalent package to reduce component counts, save space and lower design costs.

Related Resources

Surface-Mount Failsafe Electromechanical Relay Switches
Mini-Circuits

Built on Vishay’s proven SuperTan® technology, the device released features ultra-high capacitance from 2,700 to 48,000 µF in the B case code and 3,600 to 72,000 µF in the C case code. Voltage ratings for the capacitor range from 25 to 125 VDC. The EP2’s industry-leading values include a capacitance of 9,000 µF at 80 V and 58,000 µF at 35 V in the C case size. These values are 50 percent and 21 percent greater, respectively, than the closest competing device. The capacitor features a standard capacitance tolerance of ± 20 percent, with ± 10 percent tolerance available.

Optimized for pulse power and energy hold-up applications in laser guidance, radar and avionics systems, the EP2 is housed in an all tantalum, hermetically sealed case for increased reliability. Offering robust mechanical performance, the capacitor features high vibration (high frequency: 20 g; random: 19.64 g) and mechanical shock (50 g) capabilities.

The device operates over a temperature range of -55°C to +85°C, to +125°C with voltage derating, and provides maximum ESR down to 0.017 Ω at 1 kHz and +25°C. The capacitor is available with tin/lead (Sn/Pb) and RoHS-compliant 100 percent tin terminations.

Features & Benefits:

  • High energy, very high capacitance design
  • All tantalum, hermetically sealed case
  • Utilizes Vishay proven SuperTan® technology.

Applications:

  • Industrial
  • Avionics/Military/Space
  • Capacitor Banks.

Samples and production quantities of the EP2 are available now through New Yorker Electronics (NYE), with lead times of 16 weeks for larger orders. NYE supplies Vishay discrete semiconductors (diodes, MOSFETs and infrared optoelectronics) and passive electronic components (resistors, inductors and capacitors).
