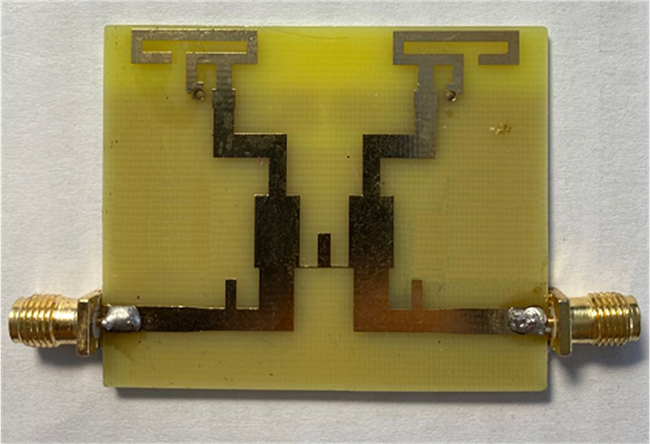

Figure 5a

Figure 5a Fabricated antenna: front view.

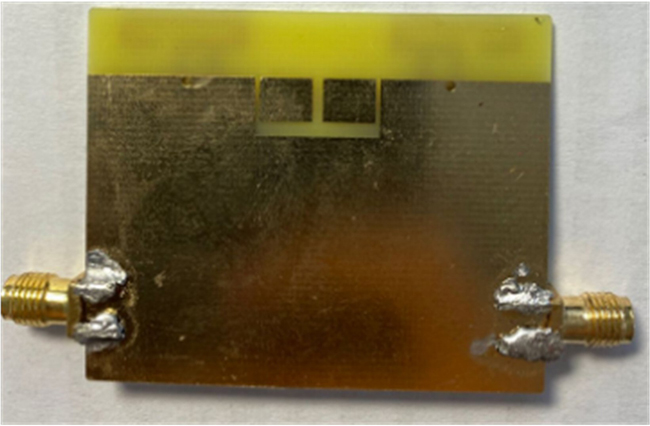

Figure 5b

Figure 5b Fabricated antenna: back view.

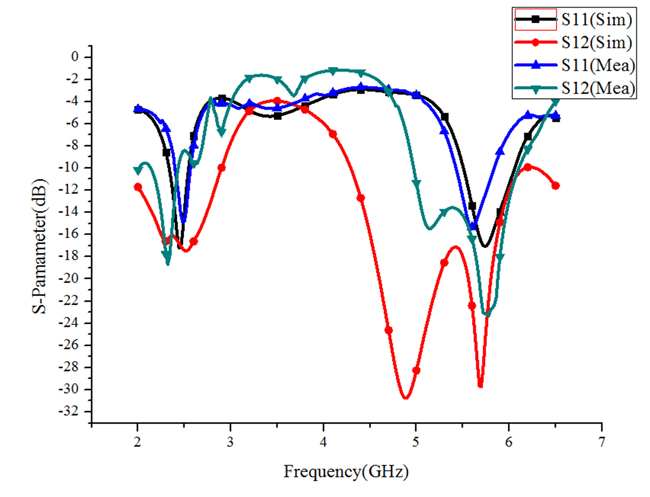

Figure 6

Figure 6 Antenna S-parameters.

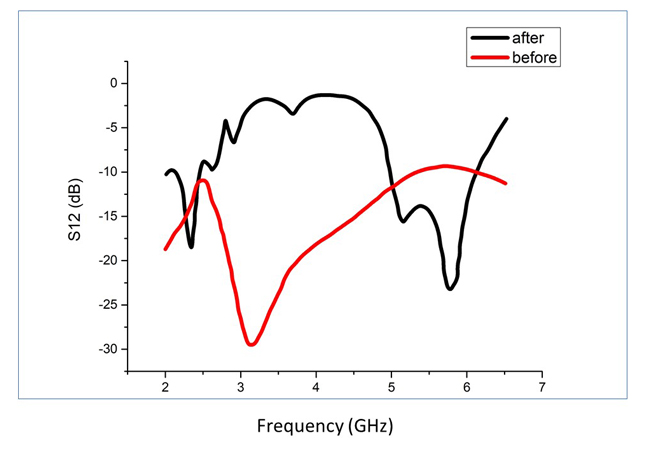

Figure 7

Figure 7 Simulated S12 of the original design compared with measured S12 of the final antenna.

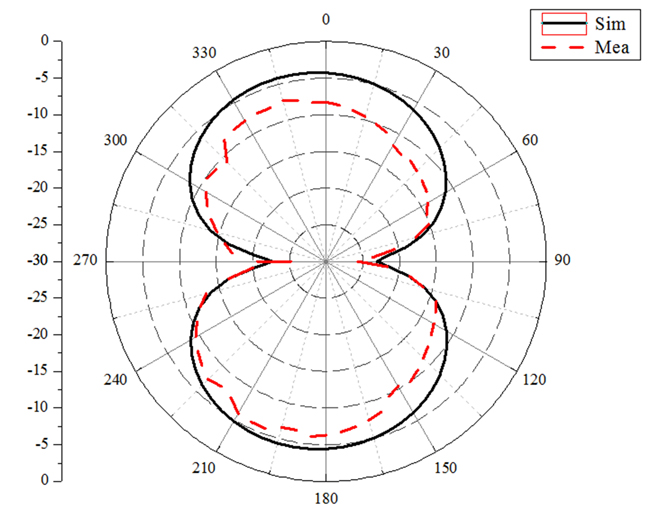

Figure 8a

Figure 8a MIMO antenna patterns: 2.45 GHz E-plane.

Figure 8b

Figure 8b MIMO antenna patterns: 2.45 GHz H-plane.

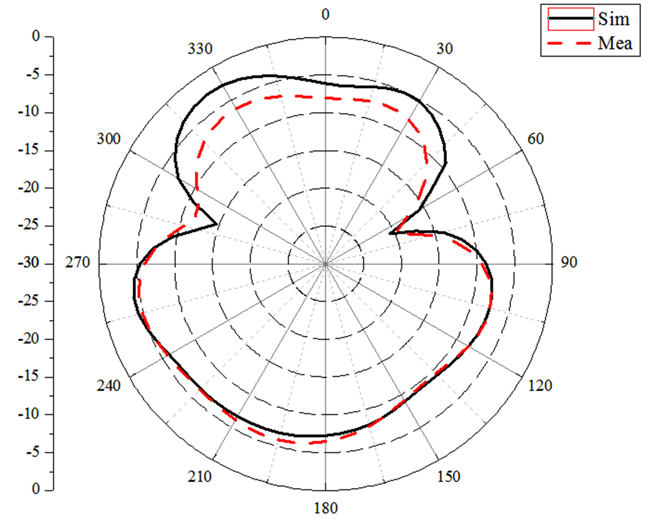

Figure 8c

Figure 8c MIMO antenna patterns: 5.8 GHz E-plane.

Figure 8d

Figure 8d MIMO antenna patterns: 5.8 GHz H-plane.

CONCLUSION

A new design approach uses odd-even mode analysis to design a MIMO antenna decoupling structure. Analysis and calculation of decoupling conditions is done first, before selecting and optimizing the structure. To avoid influencing performance in the lower frequency band, a defective ground structure is selected to improve isolation in the higher band. The introduction of these two structures completes the design of a dual-frequency high isolation MIMO antenna, and the feasibility of this method is verified through experiments. The antenna has good radiation and isolation characteristics, suitable for miniaturized mobile communications.
