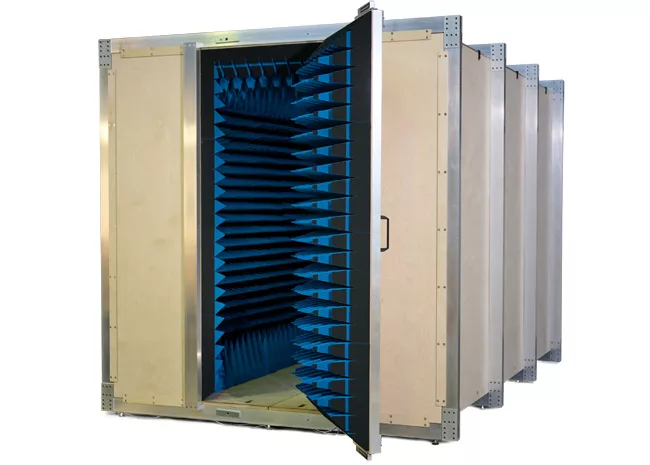

MmWave Test Solutions has debuted a new generation (GEN2) of their AC1224 antenna test chamber. It is an entirely modular design using very high-performing 115 mm (5 inches) or 300 mm (12 inches) absorbers tuned for radar, microwave, and mmWave antenna test applications.

The system starts with a W2.4 m x H2.4 m  x D3.6 m model (8 ft. x 8 ft. x 12 ft.) and is depth extendable using 1.2 m (4 ft.) modules. The modular design allows the chamber to be extended at any time if requirements change. Also available is an even wider 3.6 m version, also extendable in 1.2 m increments. All AC1224 system now uses a CNC-machined rigid aluminum frame structure to secure tight tolerances and system scalability.

Panel sizes of only 1.2 m x 2.4 m (4 ft. x8 ft.) allow the chamber parts to be hand-carried through narrow doors, into elevators, or on stairs to build the AC1224 in areas where traditional chambers can not go. Furthermore, the AC1224 GEN2 assembles from inside-out and requires almost no workspace around the chamber during assembly. It makes the system ideal for labs, offices, and basements with highly constrained building space.

The 2.4-meter and 3.6-meter versions are available immediately and ship worldwide. The DUO positioners from mmWave Test Solutions all fit the AC1224 chambers, kit prices available, check the mmWaveTest website for further technical details on chambers and positioners.

mmWave Test Solutions
