Figures 10 and 11 show simulated current distributions at 2.4 and 5.8 GHz. Current is concentrated on the microstrip line and around the slot. Also, a strong distribution at 2.4 GHz is concentrated near the right edge of the patch. Performance is strongly affected by the number and radii of slots and by microstrip feedline dimensions.

Figure 10

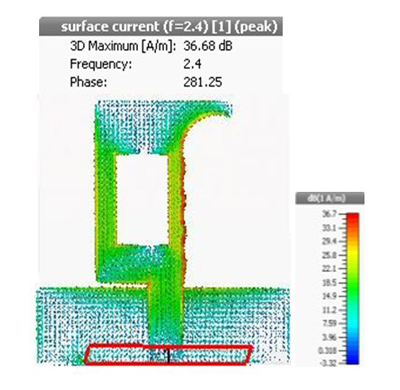

Figure 10 Antenna simulated surface current distribution at 2.4 GHz.



Figure 11

Figure 11 Antenna simulated surface current distribution at 5.8 GHz.

ANTENNA FABRICATION AND MEASUREMENTS

The dual-band RFID reader antenna is fabricated on a 1.5 mm FR4 substrate with a relative permittivity of 4.3 and a 0.025 loss tangent (see Figure 12). A network analyzer (see Figure 13) is used to measure |S11|. Measured and simulated results (see Figure 14) agree reasonably well across the operating band.

Figure 12

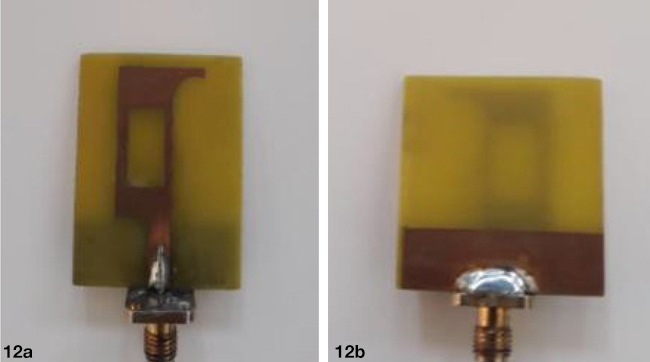

Figure 12 Fabricated antenna: front view (a) and back view (b).



Figure 13

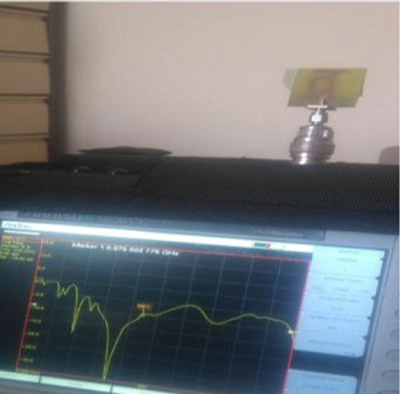

Figure 13 Network analyzer measurement of antenna |S11|.



Figure 14

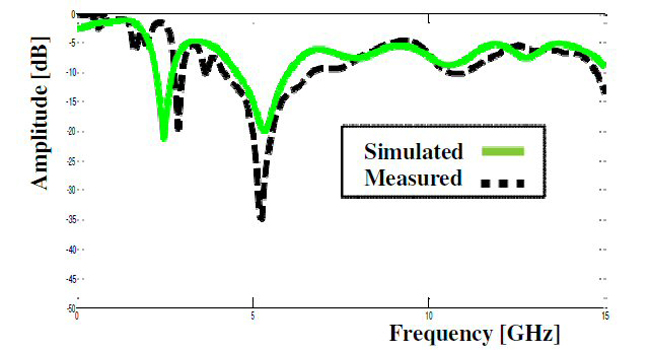

Figure 14 Comparison of antenna measured and simulated |S11|.

Figure 15 shows measured radiation patterns at 2.4 GHz. Note that the measured patterns are rotated by 90 degrees with respect to the simulated patterns in Figure 7. Similarly, measured radiation patterns at 5.8 GHz are shown in Figure 16, rotated by 90 degrees with respect to the simulated pattern in Figure 8.

Figure 15

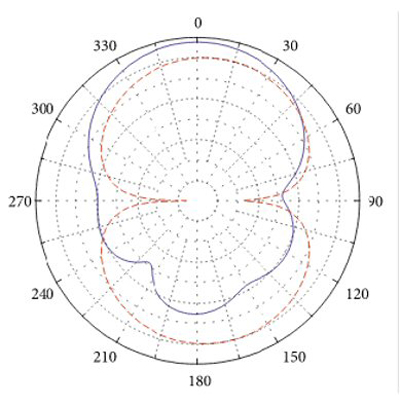

Figure 15 Measured 2.4 GHz E- and H-Plane radiation patterns (blue solid line is H-Plane, red dotted line is E-Plane).



F16

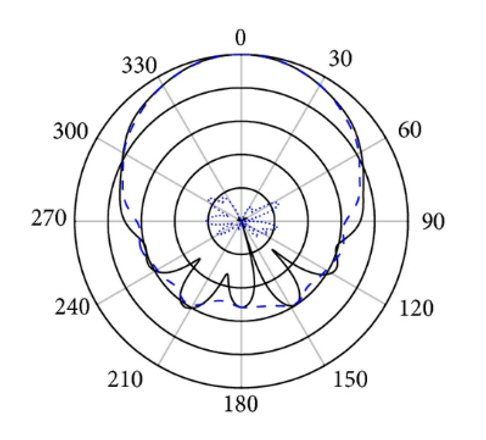

Figure 16 Measured 5.8 GHz E- and H-Plane radiation pattern (black solid line is H-Plane, blue dotted line is E-Plane).

CONCLUSIONS

Table III compares these results with similar recently published work. This antenna has comparable dimensions, impedance bandwidth and gain values. Good characteristics are achieved using the slots technique. The slots are introduced along the length of the radiating element to reduce antenna dimensions, to achieve dual-band performance and to improve return loss and gain. This antenna is easy to physically realize as a one port dual-band RFID reader antenna.

Table 3

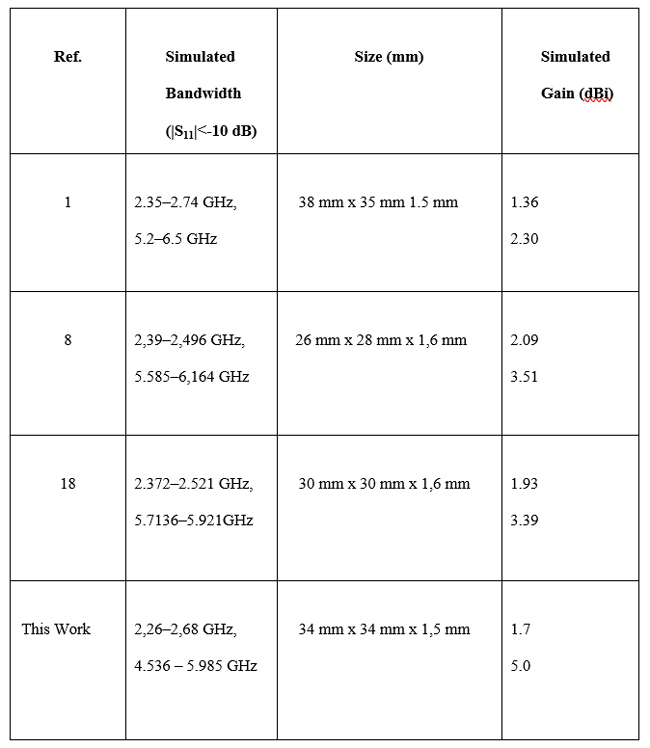

Table 3 Comparison with other work

References

  1. A. El Hamraoui, E. Abdelmounim, J. Zbitou, H. Bennis and M. Latrach, “A New Design of a CPW-Fed Dual-Band Monopole Antenna for RFID Readers,” International Journal of Electrical and Computer Engineering, Vol. 8, No. 2, April 2018, pp.1040-1047.
  2. W. Abdelrahim, Q. Feng, Z. Xiong and M. K. Khan, “A Compact Universal Antenna Design for UHF RFID Handheld Reader,” Progress in Electromagnetics Research C, Vol. 91, January 2019, pp.173-183.
  3. R. A. Oliver, Broken-Loop RFID Reader Antenna for Near Field and Far Field UHF RFID Tags, United States Design Patent D570, 337 S, United States Patent and Trademark Office, June 3, 2008.
  4. A. Ennajih, B. Nasiri, J. Zbitou, A. Errkik and M. Latrach, “A New Design of a Compact Metamaterial Antenna for RFID Handheld Applications,” Majlesi Journal of Electrical Engineering, Vol. 13, No. 2, June 2019, pp. 41-47.
  5. Y. -K. Jung and B. Lee, “Dual-Band Circularly Polarized Microstrip RFID Reader Antenna Using Metamaterial Branch-Line Coupler,” IEEE Transactions on Antennas and Propagation, Vol. 60, No. 2, February 2012, pp. 786-791.
  6. Q. Liu, J. Shen, J. Yin, H. Liu and Y. Liu, “Compact 0.92/2.45-GHz Dual-Band Directional Circularly Polarized Microstrip Antenna for Handheld RFID Reader Applications,” IEEE Transactions on Antennas and Propagation, Vol. 63, No. 9, September 2015, pp. 3849-3856.
  7. R. Caso, A. Michel, M. Rodriguez-Pino and P. Nepa, “Dual-Band UHF-RFID/WLAN Circularly Polarized Antenna for Portable RFID Readers,” IEEE Transactions on Antennas and Propagation, Vol. 62, No. 5, May 2014, pp. 2822-2826.
  8. Y. El Hachimi, Y. Gmih, El Mostafa Makroum, A. Farchi, “A Compact Dual-Band Antenna Including Symmetrical Slots for 2.45/5.8 GHz Handheld RFID Reader Applications,” 4th International Conference on Optimization and Applications, April 2018.
  9. A. El Hamraoui, El Hassane Abdelmounim, J. Zbitou, H. Bennis and M. Latrach, “Compact Dual- Band Microstrip Slot Antenna for UHF and Microwave RFID Applications,” 11th International Conference on Intelligent Systems: Theories and Applications, October 2016.
  10. A. Azarbar, M. Mashhadi and J. Ghalibafan, “A Novel Circularly Polarized Dual-Band Slot Antenna for RFID Applications,” IEEE GCC Conference and Exhibition, February 2011.
  11. A. B. Ruchi, “Multiband Microstrip Patch Antenna for RFID Applications,” International Journal of Advanced Research in Computer and Communication Engineering, Vol. 5, No. 8, August 2016, pp. 427-430.
  12. A. Batta and Ruchi, “Multiband Microstrip Patch Antenna for RFID Applications,” International Journal of Advanced Research in Computer and Communication Engineering, Vol. 5, Issue 8, August 2016, pp. 427-430.
  13. M. -S. Kim, S. -C. Jung, J. Jeong, H. Kim, M. Seo, J. Ham, C. -S. Park and Y. Yang, “Adaptive TX Leakage Canceler for the UHF RFID Reader Front End Using a Direct Leaky Coupling Method,” IEEE Transactions Industrial Electronics, Vol. 61, No. 4, April 2014, pp. 2081-2087.
  14. A. L. Borja, A. Belenguer, J. Cascon and J. R. Kelly, “A Reconfigurable Passive UHF Reader Loop Antenna for Near-Field and Far-Field RFID Applications,” IEEE Antennas and Wireless Propagation Letters, Vol. 11, May 2012, pp. 580-583.
  15. G. Xiao, P. Aflaki, S. Lang, Z. Zhang, Y. Tao, C. Py, P. Lu, C. Martin and S. Change, “Printed UHF RFID Reader Antennas for Potential Retail Applications," IEEE Journal of Radio Frequency Identification, Vol. 2, No.1, March 2018, pp. 31-37.
  16. J. Anguera, E. Martinez, C. Puente, C. Borja and J. Soler, “Broad-Band Dual-Frequency Microstrip Patch Antenna with Modified Sierpinski Fractal Geometry,” IEEE Transactions on Antennas and Propagation, Vol.52, No. 1, January 2004, pp. 66-73.
  17. H. Tizyi, F. Riouch, A. Najid, A. Tribak and A. Mediavilla, “Design of a Compact Dual-band Microstrip RFID Reader Antenna,” International Journal of Microwave and Optical Technology, Vol. 11, No. 2, March 2016.
