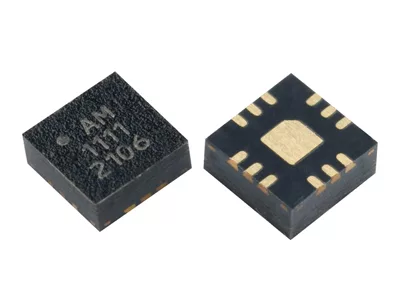

Atlanta Micro announced the AM1111, a wideband, cascadable amplifier covering the 2 to 18 GHz frequency range. The device provides exceptional linearity and power handling across its bandwidth, while maintaining flat gain and low noise figure. Packaged in a 3 mm QFN with internal 50 Ω matching and DC blocking capacitors on input and output, AM1111 provides a compact total PCB footprint.

Features:

  • 16 dB Gain
  • 2.5 dB Noise Figure
  • +32 dBm OIP3
  • +21 dB P1dB
  • +5.0 V Operation
  • 500mW Power Consumption
  • 3 mm QFN
  • 40°C to +85°C Operation.
