EXPERIMENTAL RESULTS

Simulation was performed with IE3D electromagnetic (EM) simulation software, a simulator based on the method of moments. The filter was designed on a RT/duroid® RO4350B substrate, with a dielectric constant of 3.38, thickness of 0.508 mm and loss tangent of 0.003. The dimensions of the filter (see Figure 1) were: l1 = 8.0 mm, l2 = 7.2 mm, w0 = 1.1 mm, w1 = 0.2 mm, w2 = 0.4 mm, w3 = 0.4 mm, w4 = 0.3 mm, w5 = 0.8 mm, w6 = 0.6 mm, d1 = 0.5 mm, d2 = 0.2 mm, d3 = 0.3 mm, d4 = 0.2 mm and d5 = 0.2 mm.

Related Resources

Suspended Substrate Bandpass Filter: BP13G-10G-CD-SFF
5GCAN Tx/Rx Module
High Velocity Cable Assemblies: ACH Series
Planar Filter Company

The fabricated UWB filter was measured with a Keysight Technologies N5238A vector network analyzer. The measured |S21| and |S11| are compared with the simulations in Figure 5, showing good agreement. The differences between the measurements and simulation are attributed to fabrication tolerances and the SMA connectors. Figure 6 shows the fabricated UWB bandpass filter, which is only 22 × 10 mm.

Figure 5

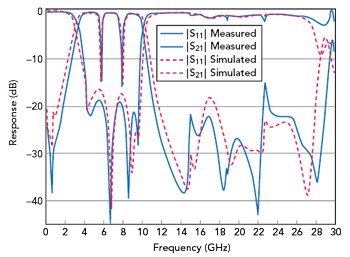

Figure 5 Measured vs. simulated |S21| and |S11|.

Figure 6

Figure 6 Fabricated UWB bandpass filter.

The passband of the fabricated filter covers 3.2 to 10.4 GHz, with a 100 percent fractional bandwidth at 6.80 GHz. The mid-band insertion loss was 0.25 dB, with return loss higher than 15 dB over the entire passband. The upper stopband stretches to 29 GHz, with insertion loss greater than 15 dB. For the two notched bands, the measured results show better than 15 dB insertion loss at 5.8 and 8.0 GHz with 3 dB FBWs of 5.9 and 4.2 percent, respectively. Comparisons with the performance of other published UWB bandpass filters are presented in Table 1.

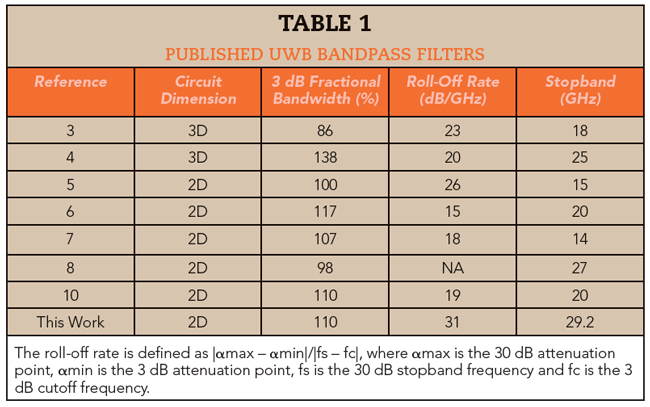

Table 1

CONCLUSION

A miniaturized UWB bandpass filter achieved a wide upper stopband, good selectivity, low passband insertion loss and small size using four high-low impedance resonant cells periodically placed in the inner area of a conventional square ring MMR. An E-shaped resonator coupled to the MSRMMR provides dual notch bands. The filter is designed for UWB wireless communication systems, offering a simple topology, compact size and excellent performance.

ACKNOWLEDGMENT

This work was supported by the Shaanxi Provincial International Cooperation Project (2018KW-068), Shaanxi Provincial Department of Education Research Project (17JK0265) and Weinan City Science and Technology Project (2017 JCYJ-2-1).

References

  1. L. Zhu, S. Sun and W. Menzel, “Ultra-Wideband (UWB) Bandpass Filters Using Multiple-Mode Resonator,” IEEE Microwave and Wireless Components Letters, Vol. 15, No. 11, November 2005, pp. 796–798.
  2. R. Gomez-Garcia and J. I. Alonso, “Systematic Method for the Exact Synthesis of Ultra-Wideband Filtering Responses Using High-Pass and Low-Pass Sections,” IEEE Transactions on Microwave Theory and Techniques, Vol. 54, No. 10, October 2006, pp. 3751–3764.
  3. B. W. Liu, Y. Z. Yin, Y. Yang, S. H. Jing and A. F. Sun, “Compact UWB Bandpass Filter with Two Notched Bands Based on Electromagnetic Bandgap Structures,” Electronics Letters, Vol. 47, No. 13, June 2011, pp. 757–758.
  4. H. Shaman and J. S. Hong, “Asymmetric Parallel-Coupled Lines for Notch Implementation in UWB Filter,” IEEE Microwave and Wireless Components Letters, Vol. 17, No. 7, July 2007, pp. 516–518.
  5. K. Song and Q. Xue, “Compact Ultra-Wideband (UWB) Bandpass Filters with Multiple Notched Bands,” IEEE Microwave and Wireless Components Letters, Vol. 201, No. 8, August 2010, pp. 447–449.
  6. F. Wei, Q. Y. Wu, X. W. Shi and L. Chen, “Compact UWB BPF with Triple-Notched Bands Based on Stub Loaded Resonator,” Electronics Letters, Vol. 49, No. 2, January 2013, pp. 124–126.
  7. J. D. Zhao, J. P. Wang and J. L. Li, “Compact UWB Bandpass Filter with Triple Notched Bands Using Parallel U-Shaped Defected Microstrip Structure,” Electronics Letters, Vol. 50, No. 2, January 2014, pp. 89–91.
  8. J. D. Zhao, J.P. Wang, G. Zhang and J. L. Li, “Compact Microstrip UWB Bandpass Filter with Dual Notched Bands using E-Shaped Resonator,” IEEE Microwave and Wireless Components Letters, Vol. 23, No. 12, December 2013, pp. 638–640.
  9. V. Sekar and K. Entesari, “Miniaturized UWB Bandpass Filters with Notch Using Slow-Wave CPW Multiple-Mode Resonators,” IEEE Microwave and Wireless Components Letters, Vol. 21, No. 2, February 2011, pp. 80–82.
  10. L. Wang, Z. J. Zhu and S. Y. Li, “High-Selectivity UWB Filters with Adjustable Transmission Zeros,” Progress in Electromagnetics Research Letters, Vol. 52, January 2015, pp. 51–56.
