Passive Plus, Inc. (PPI) offers a series of capacitors with a high-quality, high RF current/voltage with low ESR/ESL and Ultra-Stable performance characteristics. These capacitors can be used as bypass, coupling, tuning, impedance matching or DC blocking components for HF/RF power amplifiers, transmitters, antenna tuning, plasma changes and medical equipment applications.
|

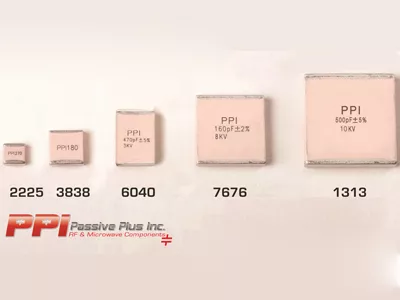

2225C/P series: Size: 0.220” x 0.250” Value Range: 0.5 pF – 2700 pF WVDC: 2500 V Extended WVDC: 3600 V TCC: C: 0 ± 30 PPM/°C (-55°C to 125°C) 0 ± 60 PPM/°C (> 125°C to 200°C) P: +90 ± 20 PPM/°C (-55°C to 200°C)
|
3838C/P series: Size: 0.380” x 0.380” Value Range: 0. 5pF – 5100 pF WVDC: 3600 V Extended WVDC: 7200 V TCC: C: 0 ± 30 PPM/°C (-55°C to 125°C) 0 ± 60 PPM/°C (> 125°C to 200°C) P: +90 ± 20 PPM/°C (-55°C to 200°C) |
|
6040C series: Size: 0.600” x 0.400” Value Range: 1 pF - 6800 pF WVDC: 5000 V Extended WVDC: 8000 V TCC: 0 ± 30 PPM/°C (-55°C to 125°C) 0 ± 60 PPM/°C (>125°C to 175°C)
|
7676C series: Size: 0.760” x 0.760” Value Range: 1 pF - 20000 pF WVDC: 5000 V Extended WVDC: 8000 V TCC: 0 ± 30 PPM/°C (-55°C to 125°C) 0 ± 60 PPM/°C (>125°C to 175°C)
|
|
1313C series: Size: 1.30” x 1.30” Value Range: 200 pF - .12 µF WVDC: 10000 V TCC: 0 ± 30 PPM/°C (-55°C to 125°C) 0 ± 60 PPM/°C ( >125°C to 175°C) |
|
