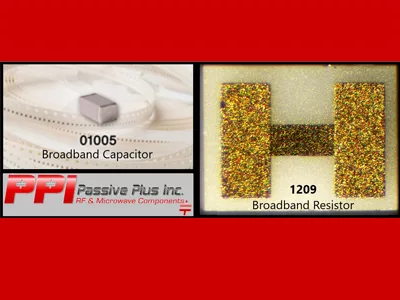

Passive Plus, Inc. (PPI) has expanded its broadband components to include one of the industry’s smallest 0.010” x 0.005” broadband capacitor part characterized for RF performance. The 01005BB104 (100 nF) broadband multilayer ceramic capacitor is complimented by the 1209 broadband resistor for similar case size and footprint, and to meet your high frequency needs.
|
01005BB104MW6R3 |
R35-1209BB50R00FR1QC |
||
|
Capacitance: |
100 nF |
Resistance: |
50 Ω |
|
Size: |
0.010” x 0.005” |
Size: |
.012” x .009” |
|
WVDC: |
6.3 V |
Power: |
50 mW |
|
TCC: |
±15%, (-55°C to +85°C) |
TCC: |
55˚C to +150˚C |
|
Typical Operating Frequency: |
16 kHz (-3 dB point) to >62 GHz |
Typical Operating Frequency: |
DC to 67 GHz |
|
Insertion Loss: |
< 1 dB |
Insertion Loss: |
3.5 dB ± 2dB typical |
|
Termination: |
Tin Plated over Nickel Barrier (RoHS) Compliant |
Metallization: |
A=Tantalum/Palladium/Gold (TaN/Pd/Au) R=Titanium/Platinum/Gold (Ti/Pt/Au) |
