Guerrilla RF introduced the GRF5506, the second of ten new ¼ W linear power amplifiers being released over the next two quarters as part of the company’s expansion into the cellular market.  These new InGaP HBT amplifiers were designed specifically for 5G/4G wireless infrastructure applications requiring exceptional native linearity over temperature extremes of -40°C to 85°C.

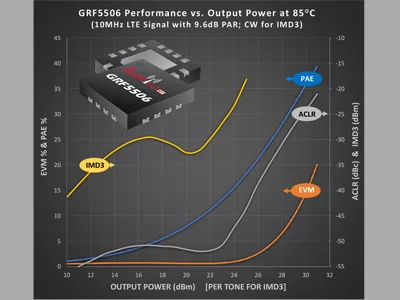

Spanning a frequency range of 660 to 720 MHz, the GRF5506 variant is tuned to operate within the n12, n28, n71 and n83 5G new radio bands. The device can deliver over 24 dBm of linear power over the entire -40°C to 85°C temperature range while maintaining ACLR levels of better than -45 dBc, IMD3 levels < -23 dBm, EVM levels < 1 percent and PAE Efficiencies > 15 percent—all without the aid of supplemental linearization schemes like digital pre-distortion (DPD).

The ability to beat the -45 dBc ACLR performance metric without DPD is critical for cellular applications like home and commercial repeaters/boosters, femtocells, picocells and cable loss compensators associated with automotive ‘shark fin’ antennas. In each of these use cases, the sensitivity to cost, power and size constraints prohibits the use of elaborate linearization techniques like DPD. Instead, designers must rely on the power amplifier’s native linearity to meet the stringent emissions mask requirements imposed by the latest 5G and 4G standards.

During the development of the GRF55xx series, Guerrilla RF consulted directly with its base of customers to ensure the devices delivered the best blend of power and linearity, thus maximizing the effective range and throughput for their cellular systems. Guerrilla RF also designed the entire family of devices to be fully footprint compatible, enabling its customer base to rapidly customize their designs for a myriad of cellular frequencies.

When describing the motivation behind the GRF5506’s development, Ryan Pratt, CEO and founder of Guerrilla RF, stated, “The GRF55xx family builds upon the groundbreaking work which we started a year ago with the release of the GRF5504/9 series of 5W InGaP HBT power amplifiers. These new ¼ W PAs were created specifically to meet the needs of our strategic customers in the cellular and automotive industries. Together with the original GRF5504/9 series, the GRF55xx family will serve as the beachhead for Guerrilla RF’s expansion into the growing power amplifier market.”

The GRF55xx family comes in pin-compatible 3 mm x 3 mm, 16-pin QFN packages. As noted above, the common footprint enables a single design to address multiple bands via simple component swaps.

Samples and evaluation boards are available now for the GRF5506. Prices start at $1.55.
