In wireless communication, 5G mobile communication has started to be used on a commercial basis. Currently, the sub-6 band (such as 3.5 and 4.7 GHz) is being used for 5G communication in various parts of the world. To increase the transmission speed, it is expected that the frequency used will be increased to the mmWave band (such as 26 GHz and 28 GHz). Furthermore, even higher frequencies in the mmWave band will be used on a full scale, with the launch of 6G mobile communication and the practical use of radars and sensors in mind.

Against this backdrop, Sumitomo Electric has achieved mass production of flexible fluororesin-based FPCs, which are characterized by a low transmission loss in the mmWave band.

Related Resources

KYOCERA AVX WBR Series of Thin Film Wire Bond Resistors
CMTA Software for Signaling Testers MD8475A/B
High Velocity Cable Assemblies: ACH Series
Sumitomo Electric Device Innovations

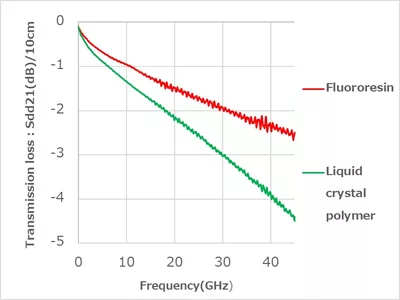

Fluororesins are characterized by low permittivity and dielectric dissipation factor compared to those of liquid crystal polymers, which have started to be used for high-frequency circuits, thereby making it possible to further reduce the transmission loss (approximately 40 percent in the 40 GHz band). The higher the frequency, the more markedly the characteristics are demonstrated. Due to these characteristics, fluororesins have attracted much attention as circuit materials with excellent characteristics in the high frequency band.

The Sumitomo Electric Group has long been engaged in fluororesin processing and has developed various products. By harnessing its accumulated expertise and technology, Sumitomo Electric has achieved mass production of fluororesin-based FPCs, whose processing was considered to be difficult. The fluororesin-based FPCs are as flexible as conventional FPCs and therefore are suited to wiring in areas where flexibility is required, such as curved surfaces.

By taking full advantage of these characteristics, the fluororesin-based FPCs are expected to find widespread applications. While used as writing materials in data centers, 5G base stations and terminal devices, they can also be employed as antennas for these stations and devices. Radar devices and sensors are also expected to be possible application targets of the fluororesin-based FPCs.
