High isolation between the feed probes is achieved by dividing the antennas with the SIW vias. Measurement and simulation results for coupling between ports is shown in Figure 5. Isolation between ports 1 and 2 is greater than 26 dB.

Figure 5

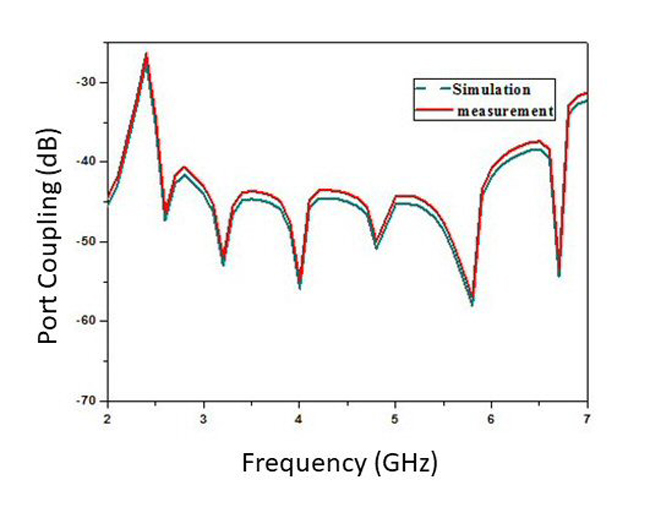

Figure 5 Simulated vs. measured coupling between ports 1 and 2.

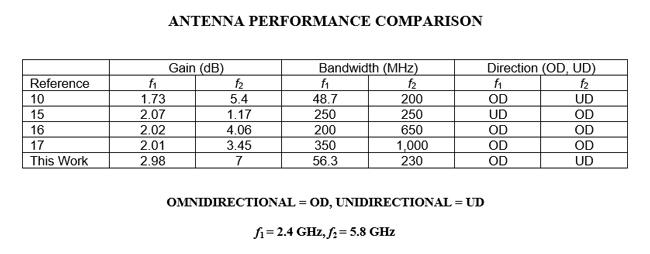

The antenna gains are approximately 3 and 7 dB at 2.4 and 5.8 GHz, respectively, as shown in Figure 6. The antenna radiation patterns were measured in an anechoic chamber for the two antenna bands. Figure 7 shows the radiation patterns corresponding to the 2.4 GHz band, and Figure 8 shows the patterns corresponding to the 5.8 GHz band. Good agreement between measurement and simulation is observed. Overall performance compared with other published work is summarized in Table 2.

Related Resources

Suspended Substrate Bandpass Filter: BP13G-10G-CD-SFF
NextGen Wireless Edu Kit
CMTA Software for Signaling Testers MD8475A/B
BEI Sensors
Table 2



Figure 6

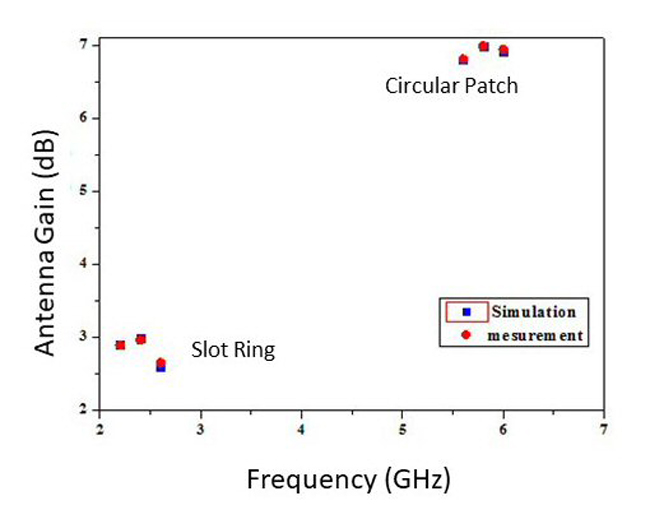

Figure 6 Simulated vs. measured antenna gain.

Figure 7

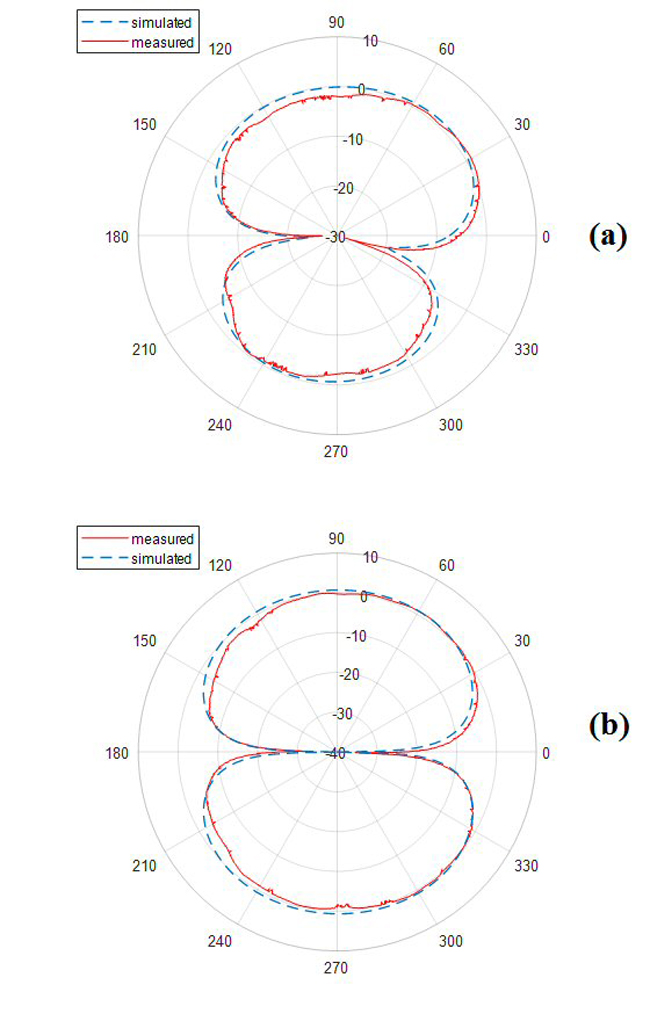

Figure 7 Normalized simulated vs. measured radiation patterns for the 2.4 GHz antenna: E-field (a) and H-field (b).

Figure 8

Figure 8 Normalized simulated vs. measured radiation patterns for the 5.8 GHz antenna: E-field (a) and H-field (b)..

CONCLUSION

A dual-band, two-port SIW cavity antenna is composed of two independent antennas operating with different modes and effectively isolated with SIW metalized vias. The antenna resonant frequencies can be tuned independently for dual-band ISM operation. The planar antenna structure and its performance make it a suitable candidate for integration with chemical sensors for wireless sensor networks.

References

  1. E. Fontana, J. -M Kim, I. Llamas-Garro and G. O. Cavalcanti, “Microfabricated Otto Chip Device for Surface Plasmon Resonance Based Optical Sensing,” Applied Optics, Vol. 54, No. 31, November 2015, pp. 9200-9204.
  2. S. S. Sabri, B. H. Ahmad and A. R. Othman, “Design and Fabrication of X-Band Substrate Integrated Waveguide Directional Coupler,” IEEE Symposium on Wireless Technology and Applications, September 2013.
  3. D. -H. Yang, T. ‐H. Liu, P. ‐Y. Ke, W. ‐P. Lin and H. ‐C. Chiu, “E-Band SIW H-Plane Horn Antenna Development,” COMPEL - The International Journal for Computation and Mathematics in Electrical and Electronic Engineering, Vol. 32, No. 2, September 2015, pp. 431-441.
  4. H. Y. Tsao, D. -Hua Yang, J. -C. Cheng, J. S. Fu and W. -P. Lin, “W-Band SIW H-Plane Horn Antenna Development,” 4th International High Speed Intelligent Communication Forum, May 2012.
  5. F. Ren, W. Hong and K. Wu, “Three-Dimensional SIW-Driven Microstrip Antenna for Wideband Linear and Circular Polarization Applications,” IEEE Antennas and Wireless Propagation Letters, Vol. 16, June 2017, pp. 2400-2403.
  6. I. Llamas-Garro, F. Mira, P. Zheng, Z. Liu, L. Wu and Y. Wang, “All Resonator Based LTCC Diplexer Using Substrate Integrated Waveguides,” Electronics Letters, Vol. 53, No. 21, November 2017, pp. 1410-1412.
  7. Y. Liu, H. -H. Kim and H. Kim, “Loop-Type Ground Radiation Antenna for Dual-Band WLAN Applications,” IEEE Transactions on Antennas and Propagation, Vol. 61, No. 9, September 2013, pp. 4819-4823.
  8. N. Herscovici, C. Christodoulou, E. Rajo-Iglesias, O. Quevedo-Teruel and M. Sanchez-Fernandez, “Compact Multimode Patch Antennas for MIMO Applications,” IEEE Antennas and Propagation Magazine, Vol. 50, No. 2, April 2008, pp. 197-205.
  9. J. H. Liu, Q. Xue, H. Wong, H. W. Lai and Y. L. Long, “Design and Analysis of a Low-Profile and Broadband Microstrip Monopolar Patch Antenna,” IEEE Transactions on Antennas and Propagation, Vol. 61, No. 1, January 2013, pp. 11-18.
  10. Z. G. Liu and Y. X. Guo, “Dual Band Low Profile Antenna for Body Centric Communications,” IEEE Transactions on Antennas and Propagation, Vol. 61, No. 4, April 2013, pp. 2282-2285.
  11. D. M. Kokotoff, J. T. Aberle and R. B. Waterhouse, “Rigorous Analysis of Probe-Fed Printed Annular Ring Antennas,” IEEE Transactions on Antennas and Propagation, Vol. 47, No. 2, February 1999, pp. 384-388.
  12. D. R. Jackson, J. T. Williams, A. K. Bhattacharyya, R. L. Smith, S. J. Buchheit and S. A. Long, “Microstrip Patch Designs that do not Excite Surface Waves,” IEEE Transactions on Antennas and Propagation, Vol. 41, No. 8, August 1993 pp. 1026-1037.
  13. W. -Q. Cao, A. J. Liu, B. N. Zhang, T. B. Yu and Z. P. Qian, “Dual-Band Spiral Patch-Slot Antenna with Omnidirectional CP and Unidirectional CP Properties,” IEEE Transactions on Antennas and Propagation, Vol. 61, No. 4, April 2013, pp. 2286-2289.
  14. S. I. Latif and L. Shafai, “Polarization Characteristics of Multiband Loaded Microstrip Annular Ring Antennas,” IEEE Transactions on Antennas and Propagation, Vol. 57, No. 9, September 2009, pp. 2788-2793.
  15. J. -I. Moon and S. -O. Park, “Small Chip Antenna for 2.4/5.8-GHz Dual ISM-Band Applications,” IEEE Antennas and Wireless Propagation Letters, Vol. 2, 2003, pp. 313-315.
  16. I. -F. Chen, C. -M. Peng and S. -C. Liang, “Single Layer Printed Monopole Antenna for Dual ISM-Band Operation,” IEEE Transactions on Antennas and Propagation, Vol. 53, No. 4, April 2005, pp. 1270-1273.
  17. N. O. Parchin, H. Jahanbakhsh , R. Abd-Alhameed and J. Noras, “Dual-Band Monopole Antenna for RFID Applications,” Future Internet, Vol. 11, No. 2, January 2019.
