Passive Plus, Inc. (PPI) is known for their customer service, high quality product line, competitive pricing and quick delivery times. While other companies are pushing out their lead-times for product delivery, PPI is committed to being able to deliver your needs as quickly as possible. As PPI tries to keep a full inventory in stock, depending on the capacitor and quantities needed, delivery times can be stock to eight weeks.
|

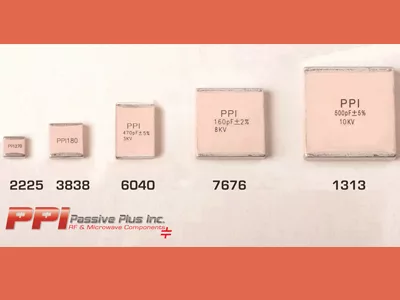

2225C/P series: Size: .220” x .250” Value Range: 0.5 pF – 2700 pF WVDC: 2500 V Extended WVDC: 3600 V TCC: C: 0 ± 30 PPM/°C (-55°C to 200°C) P: +90 ± 20 PPM/°C (-55°C to 200°C)
|
3838C/P series: Size: .380” x .380” Value Range: 0.5 pF – 510 0pF WVDC: 3600 V Extended WVDC: 7200 V TCC: C: 0 ± 30 PPM/°C (-55°C to 200°C) P: +90 ± 20 PPM/°C (-55°C to 200°C) |
|
6040C series: Size: .600” x .400” Value Range: 1 pF - 6800 pF WVDC: 5000 V Extended WVDC: 8000 V TCC: 0 ± 30 PPM/°C (-55°C to 175°C)
|
7676C series: Size: .760” x .760” Value Range: 1 pF - 20000 pF WVDC: 5000 V Extended WVDC: 8000 V TCC: 0 ± 30 PPM/°C (-55°C to 175°C) |
|
1313C series: Size: 1.30” x 1.30” Value Range: 200 pF - .12 µF WVDC: 10000 V TCC: 0 ± 30 PPM/°C (-55°C to 175°C) |
|
Available in 100 percent RoHS Tin or Tin/Lead terminations (90 percent Sn 10 percent Pb solder, SnPb 90/10)
For case sizes available in microstrip, axial and radial ribbon, axial and radial wire leads and custom assemblies, please contact PPI directly.
