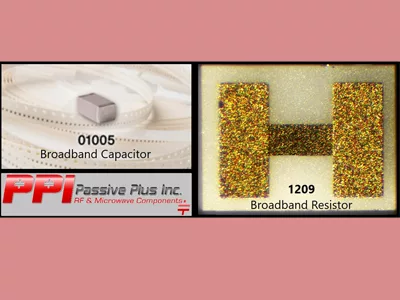

Passive Plus Inc. (PPI) has expanded its broadband components to include one of the industry’s smallest 0.010” x 0.005” broadband capacitor part characterized for RF performance. The 01005BB104 (100nF) broadband multilayer ceramic capacitor is complimented by the 1209 Broadband Resistor for similar case size and footprint, and to meet your high frequency needs.
|
01005BB104MW6R3 |
R35-1209BB50R0FR1QC |
||
|
Capacitance: |
100 nF |
Resistance: |
50Ω |
|
Size: |
.010” x .005” |
Size: |
.012” x .009” |
|
WVDC: |
6.3 V |
Power: |
50 mW |
|
TCC: |
±15%, (-55°C to +85°C) |
TCC: |
55˚C to +150˚C |
|
Typical Operating Frequency: |
16 kHz (-3dB point) to >62 GHz |
Typical Operating Frequency: |
DC to 67 GHz |
|
Insertion Loss: |
< 1 dB |
Insertion Loss: |
3.5 dB ± 2 dB typical |
|
Termination: |
Tin Plated over Nickel Barrier (RoHS) Compliant |
Metallization: |
A=Tantalum/Palladium/Gold (TaN/Pd/Au) R=Titanium/Platinum/Gold (Ti/Pt/Au) |
PPI is a manufacturer of high-performance RF/microwave passive components for the medical, semiconductor, military, broadcast, and telecommunications Industries. PPI specializes in high-Q, Low ESR/ESL capacitors, broadband capacitors, single layer capacitors, non-magnetic resistors (high power and thin film) and trimmer capacitors.
PPI is ISO9001:2015 certified.
PPI is known for their outstanding customer service, high quality product line, competitive pricing and quick delivery times. While other companies are pushing out their lead-times for product delivery, PPI is committed to being able to deliver product as quickly as possible. As PPI tries to keep a full inventory in stock, depending on the capacitor and quantities needed, delivery times can be stock to two to four weeks.
