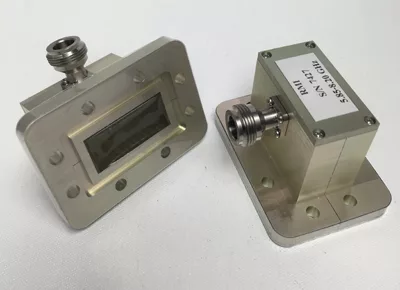

Response Microwave Inc. is pleased to announce the availability of a new waveguide to coax adaptor for use in antenna Tx/Rx applications.
The new model RMAD.BS.W137Nf operates over the 5.85 to 8.2GHz band with typical electrical performance of 0.25 dB max insertion loss, and 1.1:1 max VSWR. Power handling is 50 W CW. The unit is operational over the -10°C to +85°C range and mechanical package is 2.7 in. x 1.75 in. x 0.94 in. with precision SS/P type N female connector and WR137 flange. Alternate bands and connectors are available on request.
