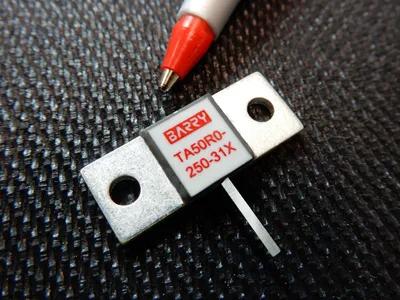

Barry Industries announces the introduction of a RoHS-compliant flange mount RF termination especially suited for 5800 MHz industrial, scientific and medical (ISM) applications. The T50R0-250-31X dissipates 250 W with 21 dB guaranteed minimum return loss from 5600 to 6100 MHz. Barry Industries is an ISO9001:2015 certified, ITAR registered manufacturer of high quality thick film resistors, terminations, attenuators and high temperature co-fired ceramic (HTCC) packaging.

The thick film on Aluminum Nitride (AlN) T50R0-250-31X termination, with its internally matched circuit architecture, can be used up to 15 GHz while still exhibiting favorable return loss.

The flange and input tab are constructed of robust Silver-plated Copper. Overall footprint is 0.975 in. x 0.375 in. (24.77 mm x 9.53 mm).

With its 250 W rating, stable resistor element and 1.1:1 Max VSWR, the T50R0-250-31X is ideal for ISM equipment. Additionally, Barry offers many other high-power flange mount terminations with power ratings from 10 to 5000 W in numerous configurations.
