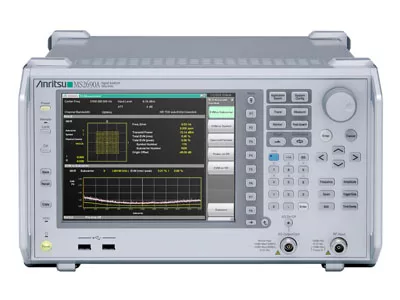

Anritsu Co. introduces three software packages for its Signal Analyzer MS269x series that support measurements of RF Tx characteristics of 5G New Radio (NR) base stations and mobile devices. Installing the 5G Measurement Software (MX269051A) and NR TDD sub-6 GHz options (MX269051A-011 and MX269051A-061) in the signal analyzers creates a cost-efficient and flexible solution for chipset and device makers, and mobile operators to verify sub-6 GHz equipment being developed for the rollout of 5G.

The new options expand the capabilities of the MS269xA, making it a single-instrument solution to verify legacy 4G LTE and LTE-Advanced products, as well as emerging 5G NR designs. Featuring excellent level accuracy and dynamic range, the Signal Analyzer MS269xA series has the performance necessary to accurately conduct critical measurements on 5G products. To further reduce the cost-of-test, an optional built-in vector signal generator is available to conduct additional measurements on sub-6 GHz designs.
