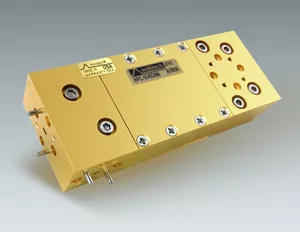

Smiths Interconnect announces the Millitech brand HPC Series of high-power circulators. Smiths Interconnect will be in Booth #1441 at IMS2017 June 6- 8 in Honolulu reviewing these and other microwave and mmWave solutions. The HPC series is designed to accommodate critical mmWave radar and communication bands. At K-Band frequency and above these mmWave circulators are able to provide protection, isolation and duplex capability to high-power transmitters and receivers. These circulators are ideal for traveling wave tube transmitter protection.

The HPC Series circulators are able to withstand 200 W of continuous wave RF power, with peaks power ratings near 2000 W. Typically, these ferrite circulators exhibit low insertion loss below 1.0 dB up to 40 GHz and less than 2.0 dB up to 110 GHz. High isolations of at least 18 dB in all bands from 18 to 110 GHz are standard with these circulators, with port-to-port isolation greater than 26 dB available for some configurations. VSWR ratings of 1.3:1, or less, are typical in all frequency bands, with some configurations providing less than 1.1:1 VSWR.

Housed in high precision machined assemblies, the HPC Series circulators use industry standard rectangular waveguide input and output interfaces to provide the lowest loss and highest signal fidelity. The carefully designed assemblies also enables reliable performance under conditions of high-power and extreme temperatures. These ferrite circulators can also be employed as isolators with the appropriate ports terminated.

To learn more about these mmWave high-power circulators, a YouTube video demonstrates the feature/benefits. For pricing inquiries and application assistance, visit Smith’s Interconnect online at www.SmithsInterconnect.com.
