Different common dielectric materials used for panel mount EMI filters and some of the key characteristics:

• C0G/NP0: Generally unaffected by temperature, voltage, frequency or time because they are very stable. Dielectric constants are relatively low, in the range of 10 to 100 and energy density is low, which means lower capacitance.

• X7R: Relatively stable over temperature, voltage, frequency and time. Typical dielectric constants are on the order of 2000 to 4000, enabling far higher capacitance values for a given capacitor size when compared with C0G/NP0 materials.

• Z5U/Y5V/X7W: General purpose materials, but performance under applied voltage may be seriously compromised.

The characteristics of these dielectrics are summarized in Table 1.

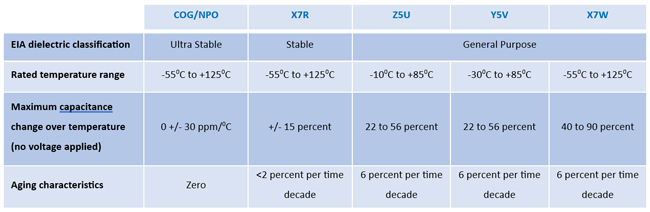

Table 1 Summary of dielectric characteristics

Capacitor Construction: Tubular, Discoidal or Planar

Historically, single-layer tubular capacitors were used for panel mount filters. An example of tubular capacitor construction and the electrical configurations is shown in Figure 5. A major advantage of using a tubular capacitor is that it is very easy to construct a Pi filter in this configuration. But as performance demands have increased, higher capacitance values are required, which means filter designers are starting to use high K, unstable dielectrics and multilayer tubes to form tubular capacitors. However, unstable dielectrics can result in poor performance over the voltage and temperature ranges. In addition, the thin ceramic walls make these capacitors prone to cracking, which results in electrical failures.

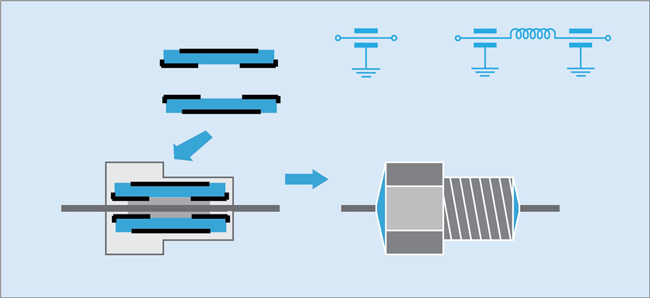

Figure 5 Representative tubular capacitors construction and electrical configurations.

As multilayer ceramic capacitor (MLCC) capabilities have developed, the discoidal capacitor is becoming a popular choice for filters. A diagram of a discoidal capacitor is shown in Figure 6. Using MLCC construction provides a very low inductance, low equivalent series inductance (ESL)/low equivalent series resistance (ESR) capacitor with improved performance and higher capacitance and voltage ranges. With a discoidal capacitor, the electrodes align with the Faraday cage and act as an extension of the cage, improving performance at higher frequencies. MLCCs are also physically much more robust than tubes.

Figure 6 A representation of discoidal capacitor construction.

Planar arrays are the final option this article will consider for EMI filter capacitor construction. A representative diagram for a planar array capacitor is shown in Figure 7. Planar arrays provide capacitance between the outside perimeter and the internal through holes. Because of this construction, a planar array functions much like many discoidal capacitors in one piece of ceramic. This design saves space and weight, allowing for EMI filtering of multiple lines in a compact and efficient design. As a result, planar arrays are the main filter connectors used in high-end military and aerospace equipment.

Figure 7 A representation of planar array capacitor construction.

Capacitor Mounting

The ceramic capacitor, which is the heart of the filter, can be damaged by thermal and mechanical shock as well as by overvoltage. Care must be taken to minimize the risk of stress when mounting the filter to a panel and when soldering wire to the filter terminations. The method of mounting the capacitors in the body is also very important because as frequency increases, the wavelength gets smaller. At higher frequencies, any gaps caused by assembly issues, such as missing solder, may allow the signals to get through the panel and this will impact performance.

Thread or Head Size and Shape

Filter heads can be round or hex-shaped. If close mounting pitch is important, a round body style offers the best solution. Round heads are mounted using modified screwdriver blades, which removes the need to allow space for mounting sockets. This allows components to be mounted so that they almost touch each other. This advantage is shown in Figure 8 with representative layouts for round heads versus traditional hexagon heads. Also, note that very small threads are harder to work with and often offer little or no advantage over larger thread sizes.

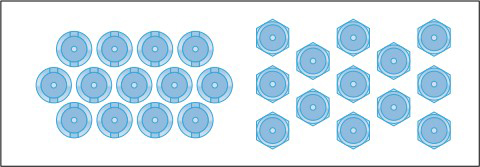

Figure 8 Pitch improvement with round head filters compared to traditional hexagon heads.

SURFACE MOUNT FILTERS

The surface mount filter is the final type to be reviewed in this article. Surface mount filters are a lower-cost alternative to panel mount filters and they offer the highest capacitance and voltage of any filter type. If a filter simply needs to suppress a certain frequency range and does not require the performance a panel mount option provides, a surface mount filter is a much cheaper alternative. However, the tradeoff is lower performance. Another potential drawback of a surface mount filter is that these filters do not sit in a Faraday cage, therefore they only block conducted interference, not radiated interference. There are three distinct families of surface mount filters: C filters, surface mount Pi/C filters and X2Y filters.

C Filters, which are also known as three-terminal chips, use conventional MLCC manufacturing techniques to form a filter that is a short circuit end-to-end and has a capacitance between the end terminals and the side (ground) terminals. The signal is carried through the internal electrodes and the current-carrying capacity is defined by the cross section and number of electrodes in the filter. This is linked to the capacitance of the filter. Compared to conventional two-terminal MLCC devices, the internal inductance between the line and ground is reduced, improving the attenuation performance.

Surface mount Pi filters incorporate two capacitors and an inductor to make a multi-element filter. This results in a sharper cut-off and better low-frequency performance than straight C filters. Current-carrying capacity is defined by the characteristics of the conductor and is independent of the capacitance of the filter.

X2Y filters are manufactured the same way as conventional MLCCs but they have a special internal architecture that results in low ESL through opposing current flows in adjacent parallel plates. These are not feedthrough devices but act as bypass filters, which means these filters are not current-limited. The only signal passing through the chip is the filtered noise to ground. X2Y filters are ideal for twin-line applications such as motors, amplifier inputs or twisted pair, balanced line applications where the filters are fitted between the lines with the center terminal taken to ground. Incorporating the capacitors in a single ceramic element eliminates any capacitance shift through temperature variation.

THE EFFECTS OF THE MOUNTING METHOD ON INSERTION LOSS

When using surface mount filters, it is important to recognize that the board material, thickness and layout, plating finish, grounding efficiency and circuit impedances will all impact the actual performance of the filter in operation. The effect of the board makes it difficult to directly compare parts unless the mounting details are defined. Therefore, it is important to test filters in a circuit to determine the performance level achieved.

CONCLUSION: INCLUDE AN EMI FILTER IN YOUR CIRCUIT DESIGN FROM THE START

EMI filters are often not included during initial design, but when equipment fails an emissions or susceptibility test, it becomes clear that the need to filter the EMI is necessary. Instead of waiting to fail a test or have a field failure, it is best to include an EMI filter in your initial circuit design. As demonstrated throughout this article, any application that needs high reliability is best suited for a panel mount filter. To save space and improve performance, an EMI discoidal style filter is generally the best panel mount option.

An application that can tolerate some noise, like a Wi-Fi router, could use a surface mount filter. This option is cheaper, faster and easier to place on a board and this type of filter saves board space compared to a combination of discrete filter elements. This solution will not approach the performance of a planar filter because the surface mount filter is not sitting in a Faraday cage.
