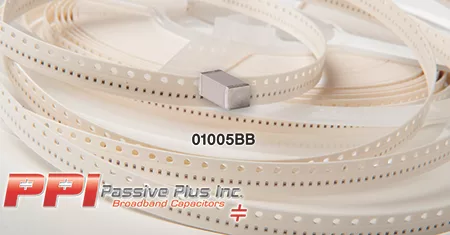

Passive Plus Inc. (PPI) has the 01005BB104 broadband 100 nF multilayer ceramic capacitors. The 01005BB104–the smallest 100 nF broadband part characterized for RF performance–has a case measuring (mils) 16 x 8 x 8, and offers resonant-free RF coupling/DC blocking from 16 kHz (lower 3 dB frequency) to beyond 65 GHz with < 1 dB insertion loss and < -15 dB return loss on suitable substrates. The 01005BB104 is rated at a DC working voltage (WVDC) of 4 and is available in a nickel-tin termination.

The 01005BB104 has global RF models available (with 90-day free trials) from Modelithics Inc. that enable accurate CAD simulation on various substrates, with a range of mounting pad dimensions.  All lots are tested at RF frequencies to insure performance consistency.

Passive Plus offers a wide variety of high-Q, broadband and general purpose multi-layer ceramic capacitors for commercial and military applications.
